Power Sensor Fiber Adapter Mounting Brackets

These mounting brackets are used to mount fiber-optic adapters to power sensors. Choose the mounting bracket specified for your sensor and the fiber adapter that matches the type of fiber you are using (FC, SC, ST, or SMA).

Mount fiber-optic adapter to a power sensor
Available for ST, SC, FC and SMA adapters
Measure power in an optical fiber

See All Features

Compatibility

A mounting bracket may be needed to mount fibers to sensors. See the compatibility table below to select an adapter bracket and fiber adapter for your sensor.

Photodiode Power Sensor Series	SC Adapter	ST Adapter	FC, FC/APC Adapter	SMA Adapter	Fiber Adapter Mounting Bracket
PD300R Series	7Z08227	7Z08226	7Z08229	1G01236A	1G02259
FPD Series					not needed
FPS-1					1G02259
3A-IS / 3A-IS-IRG					7Z08213
IS-1-2W					7Z08331
PD300-IRG	N.A.	N.A.	7Z08216	7Z08222	not needed
Thermal Power Sensor Series	SC Adapter	ST Adapter	FC, FC/APC Adapter	SMA Adapter	Fiber Adapter Mounting Bracket
2A-BB-9 / 3A / 3A-QUAD / 3A-P / 3A-P-QUAD / 3A-PF-12 / 3A-FS / 3A-P-THz	7Z08227	7Z08226	7Z08229	1G01236A	not needed
10A / 10A-PPS / 10A-P					not needed
12A / 12A-P					not needed
30A-BB-18 / 30A-N-18 / 30(150)A-BB-18 / 30(150)A-LP2-18 / F50A-BB-18					7Z08211
50(150)A-BB-26 / 50(150)A-BB-26-PPS / 50(150)A-BB-26-QUAD / F150A-BB-26 / F150A-BB-26-PPS					7Z08210

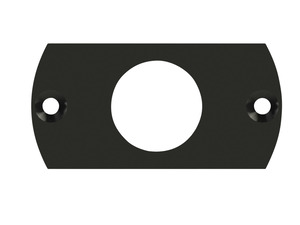

L50(150)A-BB-35 / L50(150)A-LP2-35 / L50(150)A-PF-35 / FL250A-BB-35 / FL250A-LP2-35					7Z08265

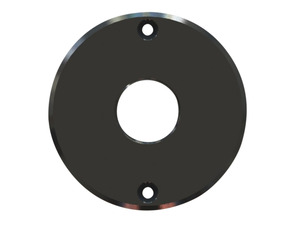

30A-P-17 / 30(150)A-SV-17 / 30(150)A-HE-17					7Z08230
L40(250)A-BB-50 / L40(250)A-LP2-50 / L50(250)A-BB-50					7Z08238
FL250A-BB-50 / FL250A-BB-50-PPS / FL400A-BB-50 / FL400A-LP2-50					7Z08212
L100(500)A-PF-120 / FL600A-BB-65 / FL600A-LP2-65 / 1000WP-BB-34 / 1000W-BB-34 / 1000W-BB-34-QUAD / 1000W-LP2-34 / FL1100A-BB-65 / FL1100A-LP2-65 / L1500W-BB-50 / L1500W-LP2-50 / L2000W-BB-120 / L2000W-PF-120 / 5000W-BB-50 / 5000W-LP2-50 / 5000WP-LP2-50	Consult Ophir representative				Threaded holes exist

Features

Measuring beams coming out of a fiber

When you need to measure a beam coming out of a fiber, there are some parameters that might have a somewhat different meaning than they do when referring to "regular" beam measurements. Missing some of these points could lead to incorrect measurement, and possible equipment damage. This video clarifies some issues you'll need to keep in mind so you can set up and perform this measurement correctly.
