Long Pulse 400 W Fan-Cooled Thermopile Sensor with 50 mm Aperture
Long Pulse 400 W Fan-Cooled Thermopile Sensor with 50 mm Aperture

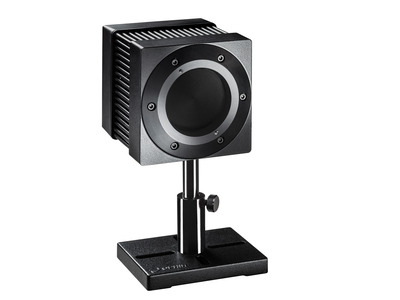

The FL400A-LP2-50 thermopile sensor is a fan cooled laser power and energy thermal sensor for high power density and long pulse lasers. It has a 50 mm aperture and can measure optical power from 100 mW to 400 W continuously and to 500 W intermittently. It can measure energy from 250 mJ to 600 J. Its high damage threshold LP2 coating covers the spectral range 350 to 2200 nm and 10.6 µm.
- LP2 type 350 to 2200 nm absorber for long pulse lasers
- Fan-cooled 0.1-400 W continuous power measurement
- 250 mJ to 600 J pulse energy measurement
- 500 W power measurement intermittently See All Features
Features
Choosing a Thermal Sensor
In this short “Basics” video we review the use – and selection - of thermal sensors for measuring low, medium and high laser powers.
How to Measure Power of Broadband Sources
This video explains how to use Ophir sensors and meters to measure the power or energy of broadband light sources such as solar radiation, flash lamps, LEDs, etc.
Thermal Power Sensor Accuracy
Ophir former CTO Dr. Ephraim Greenfield discusses the various factors that contribute to uncertainties in measurement when using Ophir laser power and energy meters.
Effects of Incidence Angle on Measurements
In this video, you will learn to what degree a beam’s incidence angle matters, and for which sensor types this should be taken into account.
Thermal Sensor Calibration
As the spectral sensitivity of the absorber used for the power and energy measurement is not fully linear, Ophir sensors get a high precision calibration by default with more than one wavelength.
Each thermal sensor is calibrated independently of a particular Ophir power meter with its calibration information contained in the DB15 plug. When the sensor is connected to the meter, the meter reads and interprets this information to display a calibrated reading. Each power meter is calibrated independently and has the same sensitivity as an other meter within about 2 tenths of a percent.
Unless otherwise indicated, Ophir sensors and meters should be recalibrated within 18 months after initial purchase, and then once a year after that.
