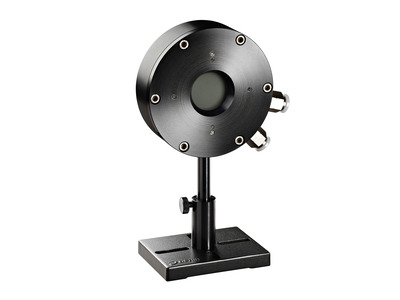

Broadband 1000 W Noncontaminating Water-Cooled Thermopile Sensor with Ø34 mm Aperture
Broadband 1000 W Noncontaminating Water-Cooled Thermopile Sensor with Ø34 mm Aperture
The 1000WP-BB-34 thermopile sensor is a water cooled laser power and energy thermal sensor with a 34 mm aperture. It can measure optical power from 5 to 1000 W and energy from 400 mJ to 300 J. It has the spectrally flat broadband BB coating and covers the spectral range from 0.19 to 20 µm. This sensor is specially designed for noncontaminating water flow.
- Broadband 0.19 to 20 µm absorber
- Water-cooled for 5 to 1000 W average power measurement
- 400 mJ to 300 J energy measurement
- Specially designed for noncontaminating water flow See All Features
Features
Choosing a Thermal Sensor
In this short “Basics” video we review the use – and selection - of thermal sensors for measuring low, medium and high laser powers.
Sensors for Measuring Laser Power
In this short "Basics" video we review in general how one goes about measuring laser beam power, so that you'll have a clear understanding of what the different sensor types are, and when to use each type.
Measuring Ultra High Power Laser Beams
Laser beams with powers of many tens of Kilowatts are becoming more and more common in today's applications, industrial as well as research. This video will discuss the technical challenges in measuring such lasers, and will show you a range of solutions now available from Ophir for measuring up to 100KW -- safely, and accurately.
Water Cooled Sensors: Things to Look Out For
Water cooled sensors are commonly used when measuring laser beams of more than a few hundred watts. In this video, you will learn about some critical issues you need to consider when using water cooling, such as water temperature, water flow rate, and corrosion prevention.
Thermal Sensor Calibration
As the spectral sensitivity of the absorber used for the power and energy measurement is not fully linear, Ophir sensors get a high precision calibration by default with more than one wavelength.
Each thermal sensor is calibrated independently of a particular Ophir power meter with its calibration information contained in the DB15 plug. When the sensor is connected to the meter, the meter reads and interprets this information to display a calibrated reading. Each power meter is calibrated independently and has the same sensitivity as an other meter within about 2 tenths of a percent.
Unless otherwise indicated, Ophir sensors and meters should be recalibrated within 18 months after initial purchase, and then once a year after that.
