BeamTrack P-Type Absorber Laser Power and Position Sensor with Ø12 mm Aperture
BeamTrack P-Type Absorber Laser Power and Position Sensor with Ø12 mm Aperture

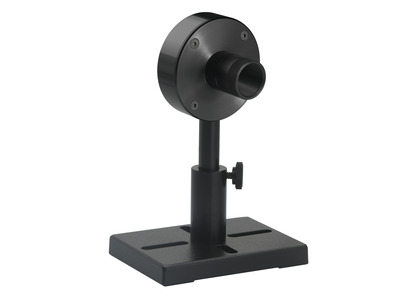

The 3A-P-QUAD BeamTrack series laser measurement sensor measures laser beam position as well as power and energy. It has a 12 mm aperture and can measure beam position to 0.15 mm accuracy. It measures power from 160 µW to 3 W and energy from 30 µJ to 2 J. It has the P type volume absorber that covers the spectral range from 0.15 to 8µm.
- P type volume absorber covers 0.15 to 8 µm spectral range
- 160 µW to 3 W power measurement range
- 30 µJ to 2 J energy measurement range
- Accurately tracks laser beam position to fractions of a mm See All Features
Software
BeamTrack Sensors with StarLab
Support for BeamTrack sensors with Vega, Nova II, Juno, EA-1, StarLite and StarBright in StarLab application is now available. Follow step-by-step instructions to upgrade the embedded software in the BeamTrack sensor with the StarLab application
When working with other meters and interfaces it is not necessary to update the embedded software of the PE-C.
Note: BeamTrack sensors can't be upgraded via EA-1 interface.
Features
BeamTrack Measures Power, Energy, Size and Position
Ophir BeamTrack Sensor Series, the industry's first thermal sensors that combine power and energy measurement, beam position, and beam size in a single compact device.
Sensors for Measuring Laser Power
In this short "Basics" video we review in general how one goes about measuring laser beam power, so that you'll have a clear understanding of what the different sensor types are, and when to use each type.
Beam Pointing Stability Measurement Made Easy with BeamTrack & StarLab
Do you need to align a complex optomechanical system? As you make various adjustments, Ophir’s BeamTrack sensors help you keep track of the beam’s power as well as its pointing stability, all at the same time. In this video, you’ll see how you can use BeamTrack with Ophir’s StarLab software to get a very rich and nuanced picture of your beam’s pointing stability, together with a reading of its power and current position and size - instantly.
Accessories
Fiber Connector Adapters
BeamTrack Sensor Cables
Sensor Connector to BNC Adapter
Resources
Data Sheets
Catalogs
Power Sensors Catalog(11.2 MB, PDF) Laser Power & Energy Measurement and Laser Beam Analysis Catalog(27.5 MB, PDF)
Drawings & CAD
3A-P-QUAD Drawing(285 kB, PDF)
Technical Notes
Absorption, Angle Dependence and Damage Graphs for Thermal Sensors(216.1 kB, PDF) 5 Situations Where Laser Performance Measurement is Necessary How do I know what range, or scale, to set my power/energy meter to?
