100 nW to 100 mW Pyroelectric 0.1-30 THz Radiometer
100 nW to 100 mW Pyroelectric 0.1-30 THz Radiometer

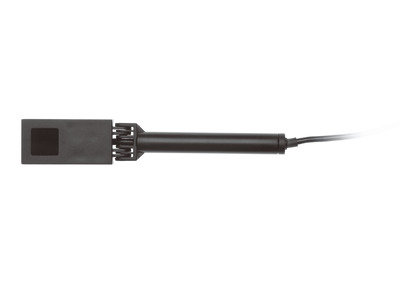

The RM9-THz pyroelectric radiometer is a sensor for measuring the power of very low level CW or quasi CW lasers and light sources. This sensor was specially designed for work in the terahertz range. The RM9-THz uses a pyroelectric sensor and lock-in amplifier with an 18 Hz chopper (not included, use RMC1 or other chopper). The power range of the RM9-THz is from 100 nW to 100 mW, it has an 8 mm aperture and covers the spectral range from 0.1 to 30THz.
- Pyroelectric sensor with 0.1 to 30 THz spectral range
- 100 nW to 100 mW power measurement range
- Use RMC1 or other chopper and lock in amplifier for lowest noise and drift
- 8 mm diameter aperture See All Features
Software
Full support available for the RM9 sensor with the Centauri, Vega, Nova II, Juno, Juno+, Juno-RS, EA-1, StarLite and StarBright and with the StarLab application.
There is limited support for the RM9 sensor with the older LaserStar, Pulsar, Quasar and Nova.
To upgrade the meters below to the version that fully supports RM9:
StarBright meters (rev 1.18 and higher) press here
Nova II / Vega meters (rev 2.44 and higher) press here
StarLite meter (rev 1.26 and higher) press here
Juno interface (rev 1.31 and higher) press here
Juno+ press here
Juno-RS press here
EA-1 press here
Centauri press here
Features
How to Measure Power of TeraHertz Beams
THz radiation is being talked about more and more lately, because of its unique usefulness in a wide range of applications. In this video you will learn about some of these applications, and about a range of solutions Ophir offers for measuring THz beams.
Measuring Laser Power Below the Noise Floor with a Lock-In Amplifier
Measuring optical signals in the femtowatt (10-15) to nanowatt (10-9) range can be very challenging. This video explains how Lock-In Amplifiers can help make these measurements possible.
Measure Very Low powers Over a Very Broad Spectrum with the RM9 Radiometer
The RM9 system measures powers down to 100 nW over a very broad spectral range, from UV to far IR. This video introduces you to the RM9, and shows you how to use it.
Resources
Data Sheets
Low Noise Lock In Power Sensors 300fW to 100mW Datasheet(263.5 kB, PDF)
Catalogs
Laser Power & Energy Measurement and Laser Beam Analysis Catalog(27.5 MB, PDF) Power Sensors Catalog(11.2 MB, PDF)
Drawings & CAD
RM9 & RM9-THz Drawing(193.1 kB, PDF)
