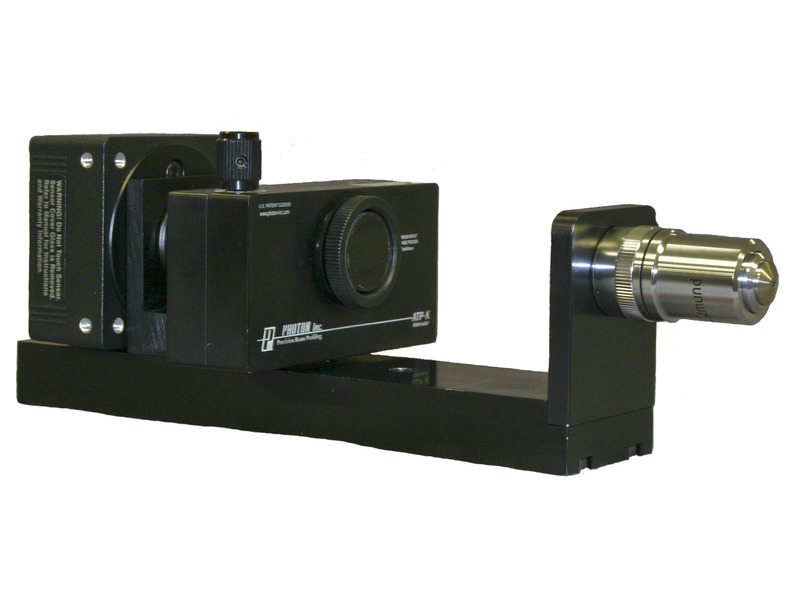

The C-mount Near Field Profiler (NFP) is a microscope attachment for a C-mount camera. It can be used to image and magnify the waist of a focused laser beam. The NFP adapter must be ordered with one or more microscope objectives. The adapter includes ND filters for attenuation of the input laser beam.
- Microscope attachment for C-mount camera
- Image the waist of a focused laser beam
- 10X, 20X, 40X and 60X microscope objectives See All Features
Features
Camera Near Field Profiler
The Camera Near Field Profiler is a camera-based attachment for beam profiling of lasers in the near field. It can also be used with camera profilers to analyze small beams and involves a microscope objective lens to image the beam onto a camera detector array. This technique expands the measurement range of the camera to include smaller beams, which could not be ordinarily measured due to the pixel size of the detector array. Near field profiling is performed in fiber and waveguide analysis, lens characterization, and other applications where a beam of 50 µm or smaller is analyzed.
Resources
Data Sheets
Near Field Profiler Datasheet(141.4 kB, PDF)
Drawings & CAD
Near Field Profiler Drawing(209.2 kB, PDF)
Technical Notes
Near Field Profiler for C-mount Cameras User Notes(404.6 kB, PDF)
Catalogs
Laser Beam Profilers Catalog (7.6 MB, PDF) Laser Power & Energy Measurement and Laser Beam Analysis Catalog(27.5 MB, PDF)
