SupIR 50-700 mm f/5.5 Motorized Continuous Zoom MWIR 640x512 Imaging Lenses
SupIR 50-700 mm f/5.5 Motorized Continuous Zoom MWIR 640x512 Imaging Lenses
The SupIR 50-700mm f/5.5 is a high performance, ruggedized, with disruptive cost-performance MWIR continuous zoom lens. Enabling longer detection, recognition, and identification (DRI) ranges with a compelling combination of performance, reliability and cost, specially designed for anti-drone applications and ideal for long range observation and surveillance systems with vehicle detection range capabilities up to 22.5 km.
- Optimized for MWIR 640x512 f/5.5 15 µm detectors
- Ruggedized design to withstand harsh environmental conditions
- Focus and F# maintained through the full zoom range
- Superb performance-to-cost ratio
- Designed for long range observation systems
- Easy integration with existing systems See All Features
HFOV [deg]
WFOV (50 mm)
| Format | |||
|---|---|---|---|
| Pitch | 640x512 | ||
| 15 µm | 10.9° | ||
NFOV (700 mm)
| Format | |||
|---|---|---|---|
| Pitch | 640x512 | ||
| 15 µm | 0.8° | ||
Features

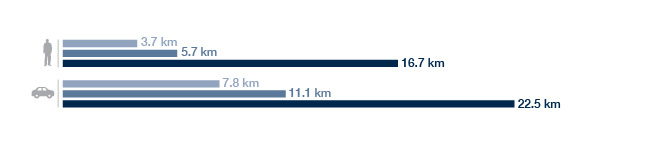

SupIR 50-700mm f/5.5 Detection, Recognition & Identification (DRI) Range
DRI ranges enable one to easily estimate the maximum range that an object can be either detected, recognized or identified. It is important to note that these estimates are based solely on geometrical parameters – the target size, distance, lens focal length and camera detector pixel size. Signal level, detector sensitivity, atmospheric conditions and other factors are not considered!
The calculations used here are based on the “Johnson Criteria”. According to the Johnson Criteria, the minimum resolution, pixels on target, required to achieve a 50% probability for an observer to discriminate an object are:
- Detection: An object is present – 2 pixels on target (Lower Bar)
- Recognition: discern the type of object, a human vs. a vehicle – 8 pixels on target (Middle Bar)
- Identification: discern specific objects, a man vs. a woman, a car model – 12.8 pixels on target (Upper Bar)
Long Range, High Performance
Our MWIR f/5.5 lenses enable longer detection, recognition, and identification (DRI) ranges with a compelling combination of performance, reliability and cost, specially designed for anti-drone applications and ideal for long range observation and surveillance systems with vehicle detection range capabilities exceeding 22 km.
Ruggedized Optical Design
These thermal imaging lenses are designed to withstand harsh environmental conditions with ease of mechanical integration. They are ruggedized with Ophir’s standard, world-renowned coatings, IP 67 front sealing, and mechanical design to withstand severe shock and vibration.
Superior Zoom Controller
These lenses are equipped with Ophir’s state-of-the-art zoom controller features:
- Continuous zoom with focus retention
- Automatic focus compensation throughout temperature and zoom ranges
- Close objects focus mode
- Focus blurring for NUC calculation
- Full manual / automatic control of zoom and focus positions
Optimal Integration and Calibration
For optimal integration and calibration, these lenses are operated with Ophir’s standard OphirSim™ software which includes:
- Lens operation testing and evaluation
- Protocol simulation
- Lens customer calibration
- Autofocus calibration
High Performance Mid-Wave Focal Plane
Using advanced technologies, top-quality materials and unique coating techniques, together with innovative engineering and opto-mechanical designs, we have earned a reputation for excellent performance, durability and quality.
High-durability and Hard-carbon AR Coatings
Our highly abrasion-resistant, anti-reflective advanced optical coatings include several types of Hard Carbon coatings which provide maximum durability, energy transmission & minimal reflection. Our innovative coating technologies include:
- Physical Vapor Deposition (PVD) – Thermal heating and electron gun
- Ion Assisted Deposition (IAD) – Ion gun
- Plasma Enhanced Chemical Vapor Deposition (PECVD) for DLC coatings
Passive Athermalized Lens Assembly
Our IR imaging lens assemblies incorporate passive athermalization of the lenses and opto-mechanical system to maintain the highest imaging performance over the full operating temperature range. We use advanced materials that enable unique athermalization properties and optomechanical designs that effectively compensate for optical variations over a wide temperature range.
