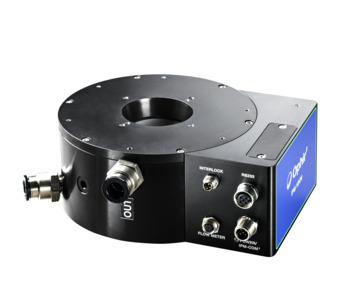

The IPM-10KW is a modular industrial sensor for measuring the average power of high-power lasers up to 11kW ideal for tough industrial use It has heavy duty design with industrial interface and connectors, interlock output to protect the sensor from overpower or cooling water failure For extra protection, the user can order the IPM-Shutter10 which provides an automated shutter with a field replaceable anti-reflective coated window. Integration into modern automation systems is available with the IPM-COM communication module (EtherNet/IP and Profinet). Applications include, cutting and drilling in industrial production and can be used by machine builders and users to assure their performance.
- ISO17025 NIST & PTB traceable calibration

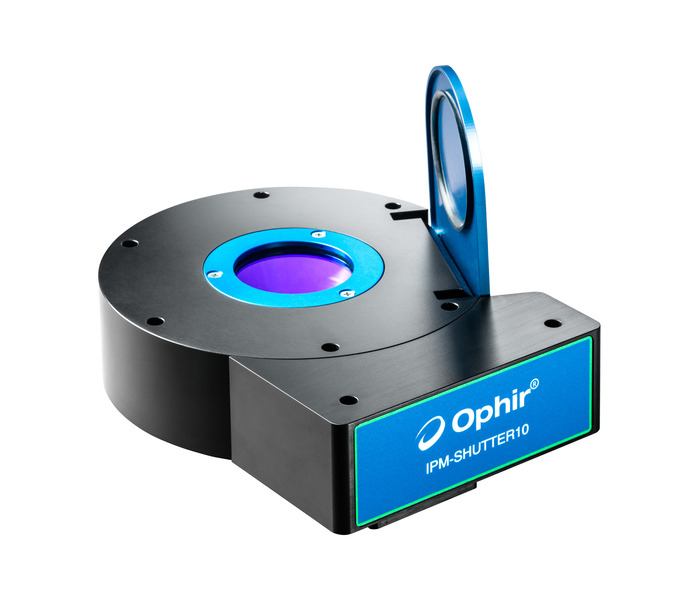

- Extra protection with IPM-Shutter10
- Easy integration into modern automation systems using RS232 or with IP-COM with EtherNet/IP, Profinet
- Interlock to protect from overpower or cooling water failure
- Real time visibility, alarm triggering (for corrective actions),traceability and logging for predictive maintenance
- Connection of fibers with customized fiber adapters See All Features
Software
Firmware – IPM-10KW
Embedded Software for IPM-10KW Industrial Sensor
Latest IPM-10KW firmware (version 1.19)
Use StarLab to upgrade the firmware of your device.
Press Here for step-by-step instructions.
Firmware – IPM-COM (for both IPM-COM-EtherNet/IP-M and IPM-COM-Profinet)
Embedded Software for IPM-COM adapters for industrial protocols
Latest IPM-COM firmware (version 2.02)
Use StarLab to upgrade the firmware of your device.
Press Here for step-by-step instructions.
Profinet Installation: GSDML File
To install the IPM-COM-Profinet into a Profinet network, download the GSDML files and follow the instructions in the User manual.
EtherNet/IP Installation: EDS File
To install the IPM-COM-EtherNet/IP-M into a EtherNet/IP network, download the EDS files and follow the instructions in the User manual.
Service Portal Webpage
Provided as a series of webpages within the IPM-COM unit. It provides a method for a technician to configure the sensor without the need to connect directly to the sensor via RS232, while keeping the interface to the sensor via the industrial protocol (Profinet, EtherNet/IP) as simple as possible. To update the "Service Portal" version use the IPM-COM WEB UTILITY Software
IPM-COM WEB UTILITY Software
Allows user to detect/change the IP Address of the IPM-COM unit. Also enables the user to update the internal Service Portal webpage that allows configuration of the IPM-COM. For instructions how to upgrade the service portal version, see IPM User manual, chapter 9.1.
Features
IPM-10KW Industrial Power Meter: High Power Laser Measurements for Tough Industrial Use
Meet the new IPM-10KW from Ophir, a modular industrial sensor for measuring the average power of high-power lasers up to 11kW. It has a rugged industrial design, and integrates into modern automation systems using standard industrial communication protocols.
