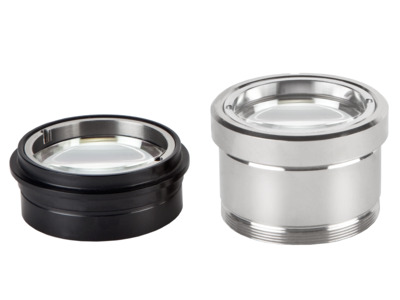

Focusing Doublet Lenses for High Power Fiber Lasers
Focusing Doublet Lenses for High Power Fiber Lasers
Aspheric surfaces on focusing doublet lenses provide improved performance over conventional, spheric surfaces, in high-power industrial fiber laser and direct diode laser systems. The aspheric shape of the optics reduces spheric aberration, resulting in a smaller spot size, a uniform spot shape and greater depth of focus.
- Aspheric surfaces for improved performance
- Reduces spheric aberration for a smaller spot size
- Uniform spot shape and greater depth of focus
- High quality fused silica substrates See All Features
Features

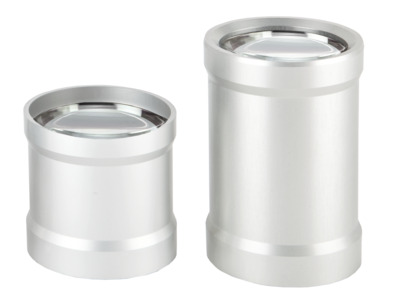

Optical Collimation and Focusing Assemblies
Our line of replacement focusing and collimation assemblies is available off-the-shelf and is compatible with leading OEM laser brands. Standard products offered for 100, 125, 150, 200 mm focal lengths. Design and manufacture, according to customer needs, is available upon request.
Custom Motorized Zoom Lens for Laser Cutting Head
OEM custom design of motorized zoom lenses are available upon request. They typically feature:
- Magnification range X1-X4
- Continuous zoom
- Total transmission >97%
- Focus range -15 to +20nmm
- Focus time 0.5 sec for full range
Download the customization request form.
