Laser Focus Spot Analyzer
Laser Focus Spot Analyzer

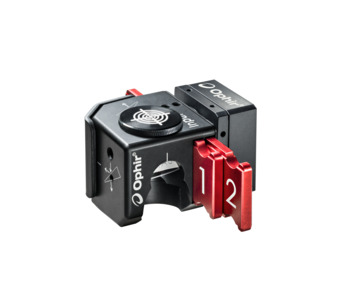

Our focal spot analyzer captures the beam size, shape and profile at focus. The FSA can also be used to measure how the focal spot shifts with power during its critical start-up phase. The FSA includes a camera, beam splitter, nd filters and BeamGage software.
- Image focal spots down to 37 µm
- For laser powers up to 400 W
- Can measure systems with a focal length as short as 73 mm
- Produces undistorted sample of laser under test
- Adjustable attenuation maximizes system dynamic range See All Features
Software
BeamGage Standard
BeamGage Standard is our full-function software with an extensive set of ISO quantitative measurement, our patented UtraCal™ algorithm for the highest accuracy measurements in the industry.
BeamGage Professional
BeamGage Professional has all of the functionality that BeamGage Standard includes. BeamGage Professional supports all of our beam profiling cameras, includes window partitioning to allow analysis of multiple beams on a single camera, and includes an automation interface written in .NET to push data to your custom applications.
Features
Resources
Data Sheets
Focal Spot Analyzer Datasheet (238.2 kB, PDF)
Drawings & CAD
LBS-300s-CAL Drawing(432.3 kB, PDF)
Technical Notes
LBS-300s-CAL User Notes(1.3 MB, PDF) Focal Spot Analyzer Beam Sampler - User Notes(920.6 kB, PDF) Focal Spot Analyzer - High Power - User Notes(689.1 kB, PDF)
Catalogs
Laser Beam Profilers Catalog (7.6 MB, PDF) Laser Power & Energy Measurement and Laser Beam Analysis Catalog(27.5 MB, PDF)
