BeamSquared® SP204S CMOS M² Beam Propagation Analyzer
BeamSquared® SP204S CMOS M² Beam Propagation Analyzer

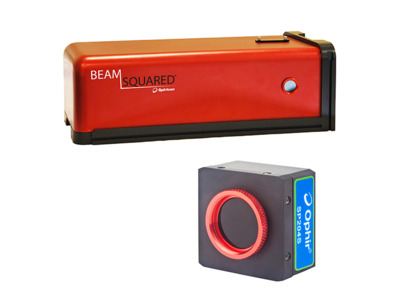

The BeamSquared® SP204S M2 propagation analyzer is a compact and fully automated tool for measuring the propagation characteristics of 266 to 1100 nm CW and pulsed laser systems. Our longer optical train and patented Ultracal™ Calibration makes BeamSquared the most accurate product on the market and is ISO 11146 compliant. Its operational robustness and reliability ensures continuous use applications in industry, science, research and development.
- SP204S 2472 x 2064 CMOS camera covers 266 to 1100 nm
- Automatic ISO measurement within 1 minute
- Continuous usage in production line
- Unparalleled accuracy with patented calibration
- Fit to majority laser types in the market
- Supports long Rayleigh length lasers
- Advanced CMOS Technology with improved sensitivity and resolution
- Improved M2 measurement in NIR wavelengths See All Features
Software
BeamSquared
BeamSquared is our full-function software with an extensive set of ISO M2 measurements with the ease-of-use and flexibility that customers have come to expect..
Features
BeamSquared M² Propagation Analyzer
Introducing the BeamSquared, a compact and fully automated tool for measuring the propagation characteristics of continuous wave and pulsed laser systems from the UV to NIR to Telecom wavelengths.
BeamSquared Automated ISO Set-Up
This video describes the BeamSquared software Auto ISO measurement feature, which makes obtaining an ISO compliant beam measurement as easy as "align and click."
Automatic M² - at Production Speeds
The BeamSquared optical train uses a fixed position lens with movable mirrors and camera. The mirrors that direct the focused beam into the camera are moved to precise locations, translating the beam through the near field, the waist, and the far field regions. All these measurements and translations, as well as incremental beam attenuation, are automatically controlled by the BeamSquared software. Design improvements in the BeamSquared system have decreased the measurement reporting time by 2-3 times, making it possible to report M² in under a minute.
Manual M²
Manual mode is available for wavelengths greater than NIR, particularly Terahertz and above, and for beams that are too large or too small for the BeamSquared optical system. Users are required to provide a manual translation/attenuation apparatus.
2D Measurements
BeamSquared measures propagation characteristics in both the X and Y axes and displays the following parameters:
- Wֺֺaist diameters
- Fֺֺull angle Divergences
- Wֺֺaist locations
- Rֺֺayleigh lengths
- Mֺֺ2 or K and BPP factors
- Aֺֺstigmatism
- Aֺֺsymmetry

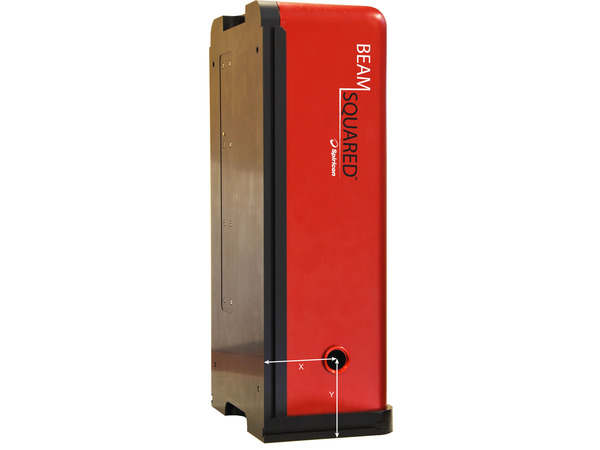

To optimize bench space, BeamSquared can be mounted either horizontally or vertically. Laser beam input port is the same dimension with either mounting method, X = Y, and the same as the M2 -200s that it is replacing.
