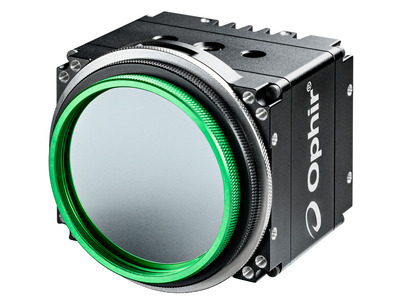

SP504S GigE 5120x5120 340-1100 nm Laser Beam Profiler
SP504S GigE 5120x5120 340-1100 nm Laser Beam Profiler
The SP504S camera accurately captures and analyzes wavelengths from 340 nm 1100nm. It is our largest active area at a 32.5 mm format, has a wide dynamic range, and unparalleled signal to noise ratio, making it ideal for beam profiling of very large beams.
- 23mm x 23mm imager format
- Highest resolution
- CMOS, Global shutter
- 44.6 dB true dynamic resolution See All Features
Software
BeamGage Professional
BeamGage Professional has all of the functionality that BeamGage Standard includes. BeamGage Professional supports all of our beam profiling cameras, includes window partitioning to allow analysis of multiple beams on a single camera, and includes an automation interface written in .NET to push data to your custom applications.
