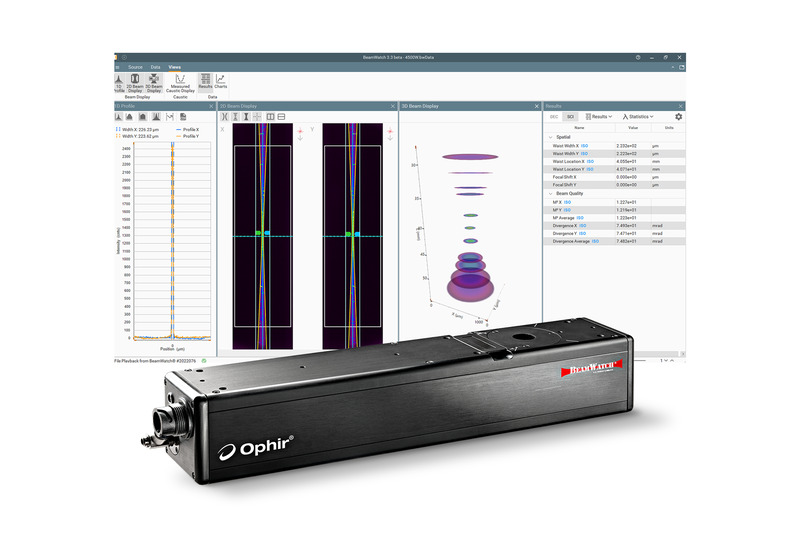

BeamWatch Non-Contact Beam Profiler, 130 µm Min Spot Size, 950-1100 nm, GigE

Specifications

Technical Specs

Product Name
BW-NIR-130
Sensor Type
CCD camera, contactless
Spectral Range
950-1100 nm
Minimum Spot Size
130 µm
Focus Spot Size
130 µm to ~2.75 mm
Power Range
400 W to >100 kW

Maximum Beam Diameter at Entrance/Exit
12.5 mm
Communication
GigE
CE Compliance
Yes
UKCA Compliance
Yes
China RoHS Compliance
Yes

Product Name
BW-NIR-130
Sensor Type
CCD camera, contactless
Spectral Range
950-1100 nm
Minimum Spot Size
130 µm
Focus Spot Size
130 µm to ~2.75 mm
Power Range
400 W to >100 kW

Maximum Beam Diameter at Entrance/Exit
12.5 mm
Communication
GigE
CE Compliance
Yes
UKCA Compliance
Yes
China RoHS Compliance
Yes
