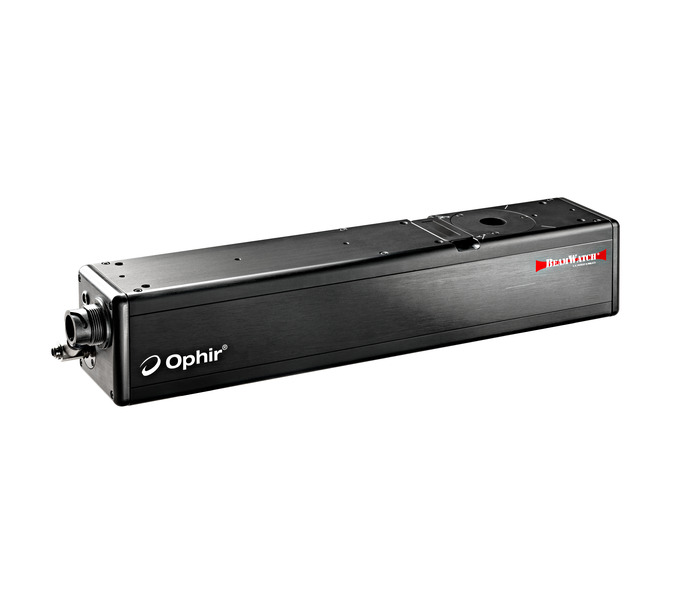

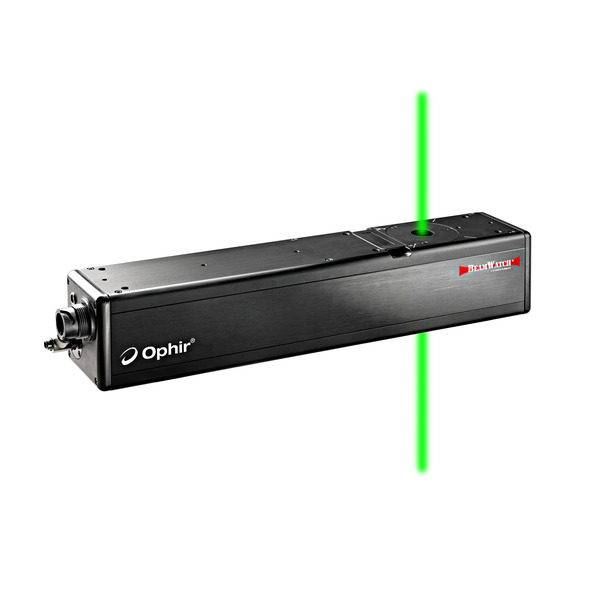

BeamWatch Plus , Non-Contact Beam Profiler, 45 µm Min Spot Size, 420-635nm and 950-1100 nm, GigE

Specifications

Technical Specs

Product Name
BW-PLUS-45
Sensor Type
CCD camera, contactless
Spectral Range
420-1100nm, 950-1100nm
Minimum Spot Size
45 µm
Focus Spot Size
45µm to 1mm
Power Range
NIR: 400 W to >100 kW; VIS: 3W to >100 kW

Maximum Beam Diameter at Entrance/Exit
12.5 mm
Communication
GigE
CE Compliance
Yes
UKCA Compliance
Yes
China RoHS Compliance
Yes

Product Name
BW-PLUS-45
Sensor Type
CCD camera, contactless
Spectral Range
420-1100nm, 950-1100nm
Minimum Spot Size
45 µm
Focus Spot Size
45µm to 1mm
Power Range
NIR: 400 W to >100 kW; VIS: 3W to >100 kW

Maximum Beam Diameter at Entrance/Exit
12.5 mm
Communication
GigE
CE Compliance
Yes
UKCA Compliance
Yes
China RoHS Compliance
Yes

Resources & Downloads

3D Product Models

2D Product Drawings

BeamWatch® Datasheet(267.2 kB, PDF)
BeamWatch-SP90613 Drawing(60.8 kB, PDF)
BeamWatch PLUS Quick Start (684.8 kB, PDF)
BeamWatch PLUS User Notes(1.9 MB, PDF)
Beam Width Measurement Methods in Beamwatch
Beamwatch Enhancements
