BeamGage Professional software

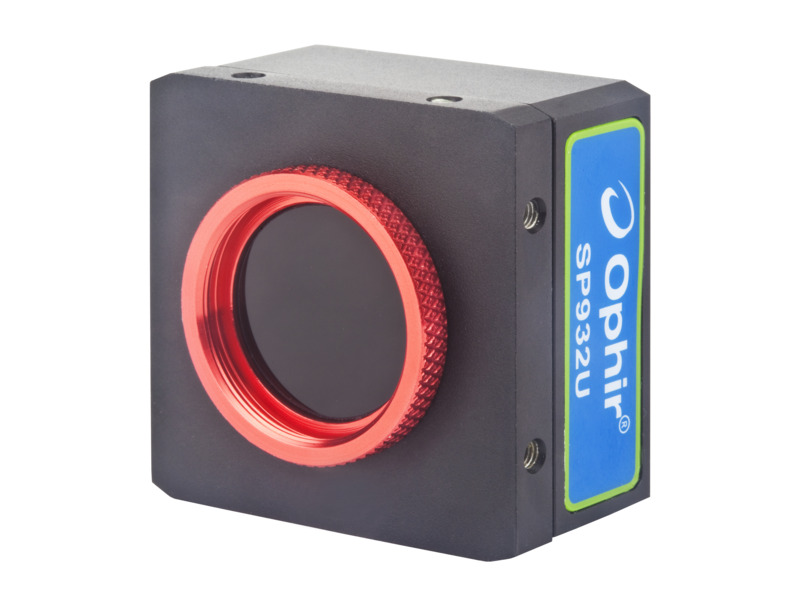

SP932U USB 2048x1536 CMOS 190-1100 nm Laser Beam Profiler

Specifications

Technical Specs

Product Name
BGP-USB3-SP932U
Spectral Range
190-1100 nm
Beam Size
34.5μm-5.3mm
Communication Interface
USB 3.0
Sensor Type
Silicon CMOS
Compatible Light Sources
CW, Pulsed
Active Area
7.06mm x 5.3mm
Sensor Recess
4.5mm

Effective Pixel Pitch
3.45μm
Dynamic Range
72 dB
Full Resolution Frame Rate
24fps
Saturation Intensity
32μW/cmᒾ at 633nm, 500μW/cmᒾ at 1064nm
CE Compliance
Yes
UKCA Compliance
Yes
China RoHS Compliance
Yes

Product Name
BGP-USB3-SP932U
Spectral Range
190-1100 nm
Beam Size
34.5μm-5.3mm
Communication Interface
USB 3.0
Sensor Type
Silicon CMOS
Compatible Light Sources
CW, Pulsed
Active Area
7.06mm x 5.3mm
Sensor Recess
4.5mm

Effective Pixel Pitch
3.45μm
Dynamic Range
72 dB
Full Resolution Frame Rate
24fps
Saturation Intensity
32μW/cmᒾ at 633nm, 500μW/cmᒾ at 1064nm
CE Compliance
Yes
UKCA Compliance
Yes
China RoHS Compliance
Yes

Resources & Downloads

3D Product Models

2D Product Drawings

USB Silicon CMOS Camera Datasheet (152 kB, PDF)
CMOS Camera Drawing(29.4 kB, PDF)
BeamGage Datasheet (647.6 kB, PDF)
