Laser Beam Profiler, 320x256 px, 60 Hz, 900-1700 nm, GigE, BeamGage Pro, USA Only

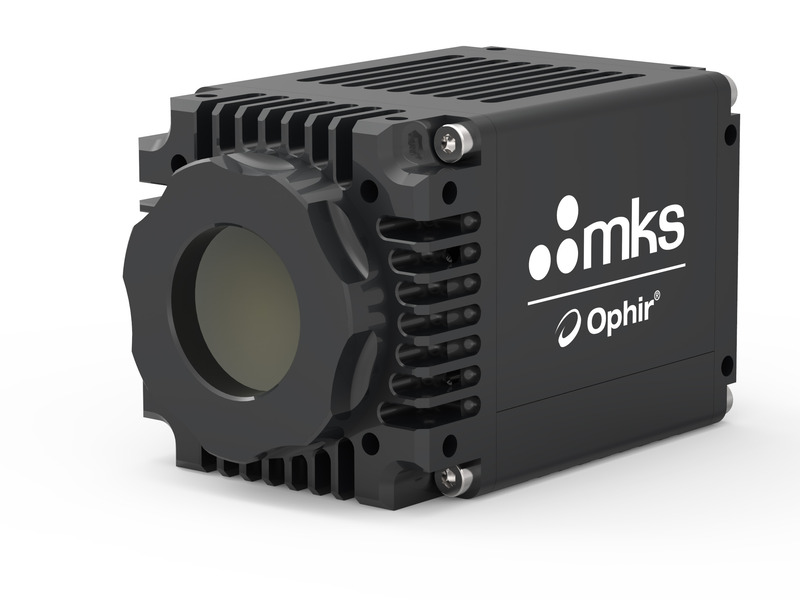

SP1201 GigE 320x256 CCD 900-1700 nm Laser Beam Profiler

Laser Beam Profiler, 320x256 px, 60 Hz, 900-1700 nm, GigE, BeamGage Pro, USA Only

The SP1201 camera accurately captures and analyzes wavelengths from 900nm - 1700nm. It features a QVGA sensor, compact design, power over Ethernet, stabilized sensor cooling with no fan, and automatic NUC file correction. This InGaAs camera-based beam profiling system is ideal for eye-safe military, telecom, and medical laser applications.

Specifications

Technical Specs

Spectral Range
900-1700 nm
Beam Size
300 µm - 7.4 mm
Sensor Type
InGaAs
Compatible Light Sources
CW, Pulsed
Active Area
9.6 x 7.6 mm
Sensor Recess
17.5 mm
Elements
320 x 256
Effective Pixel Pitch
30 μm
Dynamic Range
59 dB

Full Resolution Frame Rate
60 fps
Saturation Intensity
0.4 μW/cm² @ 1064 nm
0.2 μW/cm² @ 1550 nm
Software
BeamGage Professional
CE Compliance
Yes
UKCA Compliance
Yes
China RoHS Compliance
Yes
Communication
GigE

Spectral Range
900-1700 nm
Beam Size
300 µm - 7.4 mm
Sensor Type
InGaAs
Compatible Light Sources
CW, Pulsed
Active Area
9.6 x 7.6 mm
Sensor Recess
17.5 mm
Elements
320 x 256
Effective Pixel Pitch
30 μm
Dynamic Range
59 dB

Full Resolution Frame Rate
60 fps
Saturation Intensity
0.4 μW/cm² @ 1064 nm
0.2 μW/cm² @ 1550 nm
Software
BeamGage Professional
CE Compliance
Yes
UKCA Compliance
Yes
China RoHS Compliance
Yes
Communication
GigE

Laser Beam Profiler, 320x256 px, 60 Hz, 900-1700 nm, GigE, BeamGage Pro, USA Only

Model: SP90547
