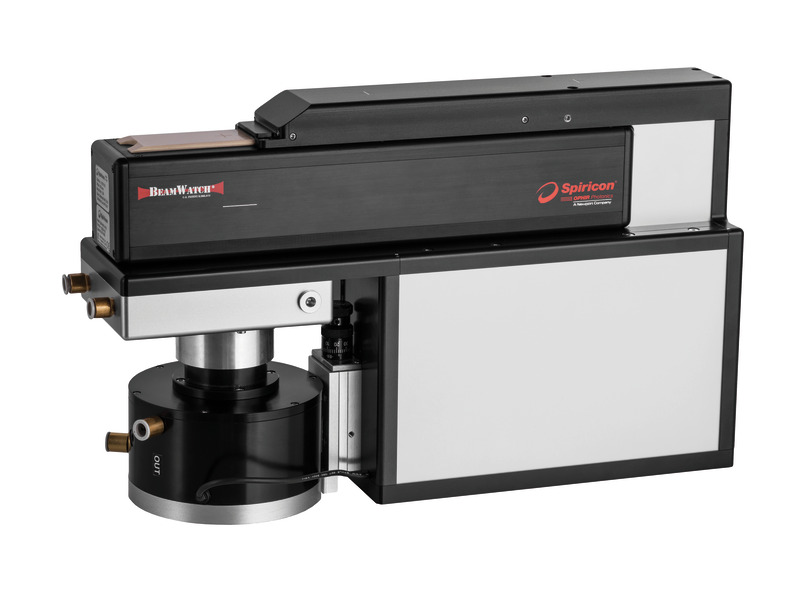

BeamWatch Integrated Non-Contact Beam Profiler System, 150-175 mm, 980-1080 nm, EtherNet/IP

BeamWatch® Integrated 150 Caustic and Power Laser Measurement System

Specifications

Technical Specs

Spectral Range
980-1080 nm
Minimum Spot Size
155µm
Focus Spot Size
155µm to 2.75mm
Power Range
500-9999 W
Maximum Beam Diameter at Entrance/Exit
12.5 mm
Focus to Power Meter Distance
150-175 mm

Beam Profiling
ISO 11146 Measurements
Communication
EtherNet/IP
CE Compliance
Yes
UKCA Compliance
Yes
China RoHS Compliance
Yes

Spectral Range
980-1080 nm
Minimum Spot Size
155µm
Focus Spot Size
155µm to 2.75mm
Power Range
500-9999 W
Maximum Beam Diameter at Entrance/Exit
12.5 mm
Focus to Power Meter Distance
150-175 mm

Beam Profiling
ISO 11146 Measurements
Communication
EtherNet/IP
CE Compliance
Yes
UKCA Compliance
Yes
China RoHS Compliance
Yes

Resources & Downloads

3D Product Models

2D Product Drawings

BW Integrated Drawing(620.9 kB, PDF)
BeamWatch Integrated 150 Drawing(457.9 kB, PDF)
