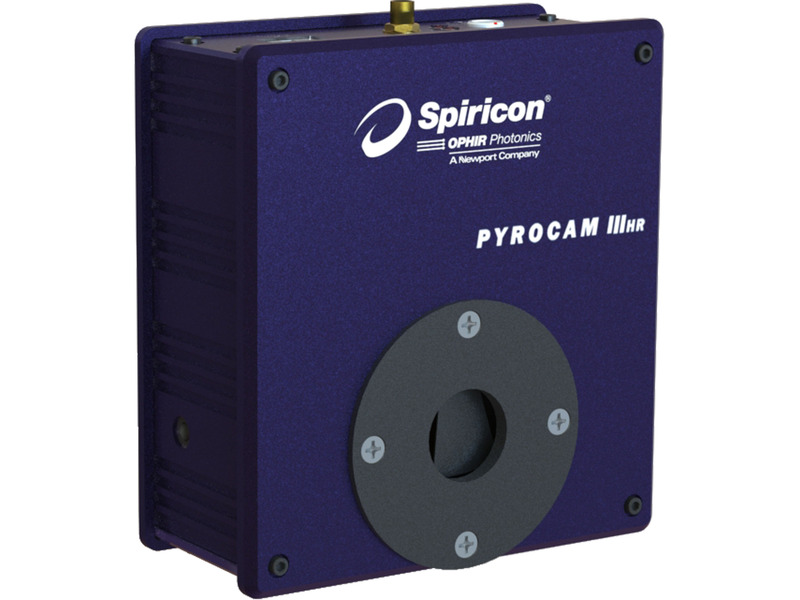

Pyrocam III HR Laser Beam Profiler, 160x160 Pyroelectric, 100 fps, 13-355 nm/1.06-3000 μm, GigE

Pyrocam™ IIIHR GigE 160x160 Pyroelectric Array Laser Beam Profiler

Specifications

Technical Specs

Spectral Range
13-355 nm, 1.06-3000 µm
Beam Size
1600 µm - 12.3 mm
Sensor Type
Pyroelectric Array
Compatible Light Sources
CW, Pulsed up to 1KHzk
Active Area
12.8 x 12.8 mm
Sensor Recess
15.15 mm
Elements
160 x 160
Effective Pixel Pitch
80 μm

Full Resolution Frame Rate
100 fps
Saturation Intensity
Chopped Mode: 3.0 W/cm² (25 Hz) and 4.5 W/cm² (50 Hz)
Pulsed Mode: 15 mJ/cm²
Software
BeamGage Professional
CE Compliance
Yes
UKCA Compliance
Yes
China RoHS Compliance
Yes
Communication
GigE

Spectral Range
13-355 nm, 1.06-3000 µm
Beam Size
1600 µm - 12.3 mm
Sensor Type
Pyroelectric Array
Compatible Light Sources
CW, Pulsed up to 1KHzk
Active Area
12.8 x 12.8 mm
Sensor Recess
15.15 mm
Elements
160 x 160
Effective Pixel Pitch
80 μm

Full Resolution Frame Rate
100 fps
Saturation Intensity
Chopped Mode: 3.0 W/cm² (25 Hz) and 4.5 W/cm² (50 Hz)
Pulsed Mode: 15 mJ/cm²
Software
BeamGage Professional
CE Compliance
Yes
UKCA Compliance
Yes
China RoHS Compliance
Yes
Communication
GigE

Resources & Downloads

3D Product Models

2D Product Drawings

Pyroelectric Array Cameras Datasheet(456.3 kB, PDF)
Pyrocam IIIHR User Guide(1,022.3 kB, PDF)
Pyrocam IIIHR Drawing(247.8 kB, PDF)
BeamGage Datasheet (647.6 kB, PDF)
