Beam Sampling System, C-mount, 9-11 µm, 50-1000 W

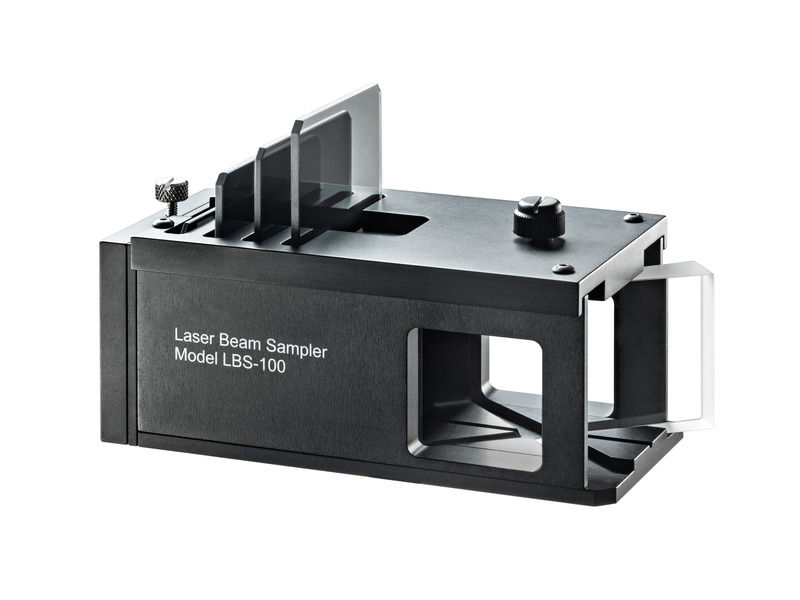

LBS-100 Beam Splitter for Laser Beam Profilers

Specifications

Technical Specs

Spectral Range
10.6 µm
Transmission
30% for 3 mm flat
60% for 1 mm flat
Damage Threshold
Wedge: 1000 W CW, 105 J/cm²
Filter: 50 W/cm²
Material
Wedge: ZnSe
Filter: CaF₂

Wedge Reflection
AR coated, ≤0.5%
Interface
C-mount
Clear Aperture
Ø19 mm

Spectral Range
10.6 µm
Transmission
30% for 3 mm flat
60% for 1 mm flat
Damage Threshold
Wedge: 1000 W CW, 105 J/cm²
Filter: 50 W/cm²
Material
Wedge: ZnSe
Filter: CaF₂

Wedge Reflection
AR coated, ≤0.5%
Interface
C-mount
Clear Aperture
Ø19 mm
