Beam Sampling System, C-mount, 1064 nm, 20-500 W

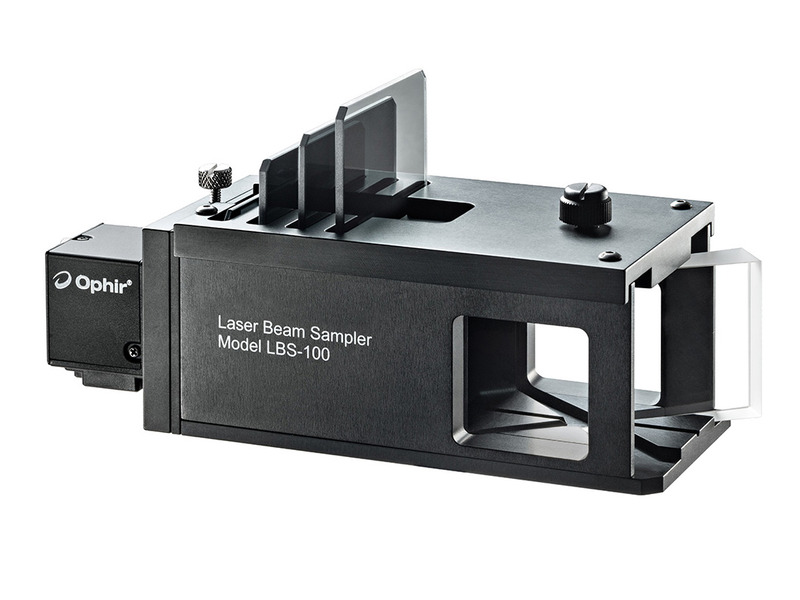

LBS-100 Beam Splitter for Laser Beam Profilers

Specifications

Technical Specs

Spectral Range
1064 nm
Nominal ND
0.3, 0.7, 1.0, 2.0, 3.0, 4.0 ND at 632 nm
Damage Threshold
Wedge: 500 W/cm² CW, 30 kJ/cm² 1 ms Pulse
Filter: 50 W/cm²
Material
Wedge: UVFS
Filter: Bulk ND

Wedge Reflection
AR coated, ≤1%
Interface
C-mount
Clear Aperture
Ø19 mm

Spectral Range
1064 nm
Nominal ND
0.3, 0.7, 1.0, 2.0, 3.0, 4.0 ND at 632 nm
Damage Threshold
Wedge: 500 W/cm² CW, 30 kJ/cm² 1 ms Pulse
Filter: 50 W/cm²
Material
Wedge: UVFS
Filter: Bulk ND

Wedge Reflection
AR coated, ≤1%
Interface
C-mount
Clear Aperture
Ø19 mm

Resources & Downloads

3D Product Models

2D Product Drawings

LBS-100 Drawing(158.9 kB, PDF)
LBS-100 Attenuator Datasheet(143.4 kB, PDF)
