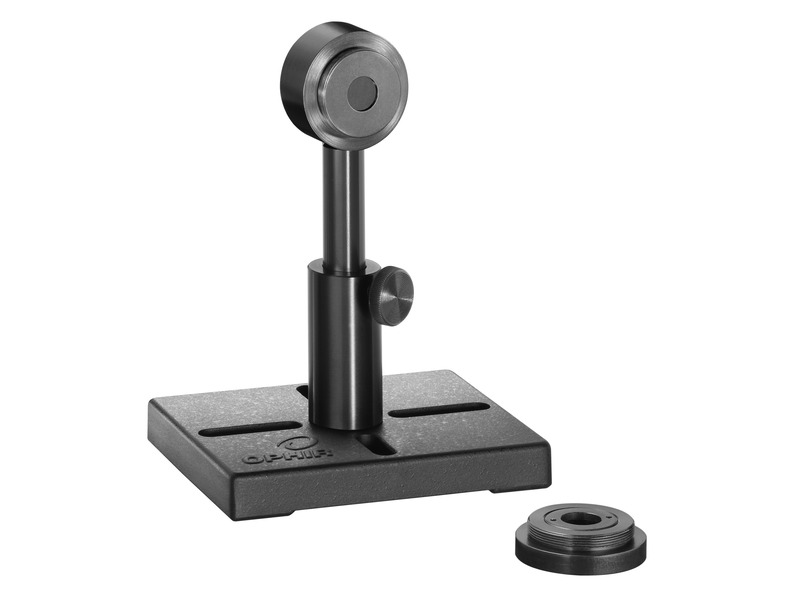

Photodiode Power Sensor, Silicon, 5 nW to 3 W, Ø10 mm, 350-1100 nm, Round

PD300R-3W Ø10 mm Aperture 3000 mW Silicon Photodiode Sensor

Specifications

Technical Specs

Aperture Size
Ø10 mm
Material
Silicon
Spectral Range
350-1100 nm
Minimum Power
5 nW
Maximum Average Power
3000 mW
Maximum Pulse Energy
400 µJ

Cable Length
1.5 m
Dimensions
Ø35 x 24 mm
CE Compliance
Yes
UKCA Compliance
Yes
China RoHS Compliance
Yes

Aperture Size
Ø10 mm
Material
Silicon
Spectral Range
350-1100 nm
Minimum Power
5 nW
Maximum Average Power
3000 mW
Maximum Pulse Energy
400 µJ

Cable Length
1.5 m
Dimensions
Ø35 x 24 mm
CE Compliance
Yes
UKCA Compliance
Yes
China RoHS Compliance
Yes

Resources & Downloads

3D Product Models

2D Product Drawings

Round Photodiode Sensors 20pW to 3W Datasheet(383 kB, PDF)
PD300R Drawing(184.7 kB, PDF)
Accessories for Photodiode Sensors(351.9 kB, PDF)
