MWIR Continuous Zoom Lens, SupIR, 19-275 mm FL, f/5.5, High Durability

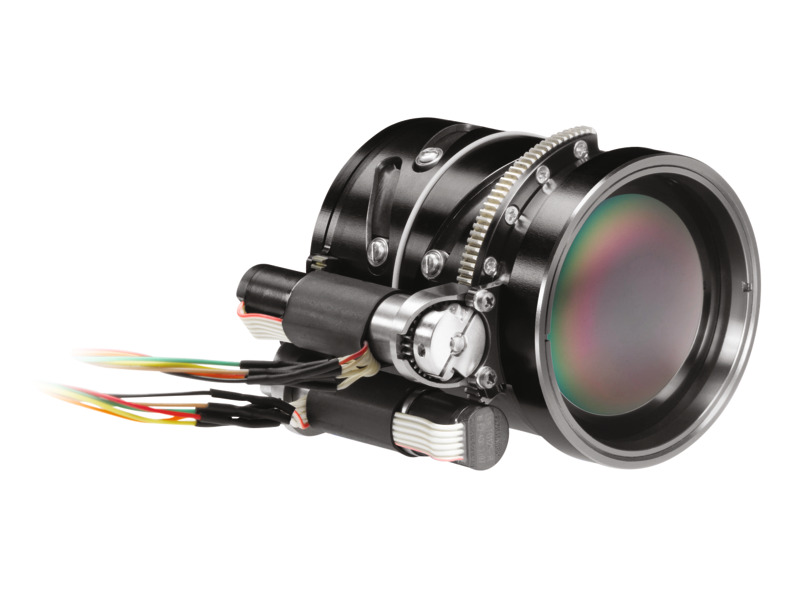

SupIR 19-275 mm f/5.5 Motorized MWIR Zoom Imaging Lens

MWIR Continuous Zoom Lens, SupIR, 19-275 mm FL, f/5.5, High Durability

The SupIR 19-275mm f/5.5 motorized focus MWIR imaging lens (P/N 6519608) has a 19-275 mm focal length with an f-number of 5.5. This continuous zoom lens features our high durability antireflection coating and is designed for standard definition format cooled MWIR cameras. These lenses provide a crisp image over the full zoom range, with MTF close to the diffraction limit. Providing outstanding detection, recognition and identification (DRI) ranges, these MWIR lenses are suitable for a wide range of commercial, surveillance and homeland security applications.

Horizontal Field of View (HFOV)

WFOV (19 mm)

	Format
Pitch	320x256	480x384	640x512
30 µm	29.8°
20 µm	19.6°	29.8°
15 µm	14.6°	22.1°	29.8°

NFOV (275 mm)

	Format
Pitch	320x256	480x384	640x512
30 µm	2.0°
20 µm	1.3°	2.0°
15 µm	1.0°	1.5°	2.0°

Specifications

Technical Specs

Type
Continuous Zoom
Focal Length
19-275 mm
F/#
5.5
Coating Type
High Durability
Spectral Range
3.4-5.0 μm
Avg.Trns.
87%
Cold Stop FPA Distance
19.7 mm
Cold Stop Clear Aperture
Ø3.56 mm
Back Focal Length
24.7 mm in air (Assuming 1.5 mm Ge Window & Filter)
Minimum Focus Range
5 / 50 m
Nuc (by defocus)
Yes
Focus Mechanism
Motorized
Focus Time
≤8 sec
Zoom Mechanism
Motorized
Zoom Time
≤5 sec
Through-zoom Boresight
Within a radius of 0.15 mm at the focal plane

Weight
445 g
Dimensions
Ø63.5 x 74.3 mm
Drive Voltage
12 VDC
Current Consumption
0.2 A average, 1.0 A peak
Communication Interface
RS422
Operating Temperature Range
-32 to +65°C
Storage Temperature Range
-40 to +71°C
Sealing
IP67 front element only
Long Range
Yes
Lightweight
No
HD Format
No
FPA Format
640x512
Wavelength Region
MWIR

Type
Continuous Zoom
Focal Length
19-275 mm
F/#
5.5
Coating Type
High Durability
Spectral Range
3.4-5.0 μm
Avg.Trns.
87%
Cold Stop FPA Distance
19.7 mm
Cold Stop Clear Aperture
Ø3.56 mm
Back Focal Length
24.7 mm in air (Assuming 1.5 mm Ge Window & Filter)
Minimum Focus Range
5 / 50 m
Nuc (by defocus)
Yes
Focus Mechanism
Motorized
Focus Time
≤8 sec
Zoom Mechanism
Motorized
Zoom Time
≤5 sec
Through-zoom Boresight
Within a radius of 0.15 mm at the focal plane

Weight
445 g
Dimensions
Ø63.5 x 74.3 mm
Drive Voltage
12 VDC
Current Consumption
0.2 A average, 1.0 A peak
Communication Interface
RS422
Operating Temperature Range
-32 to +65°C
Storage Temperature Range
-40 to +71°C
Sealing
IP67 front element only
Long Range
Yes
Lightweight
No
HD Format
No
FPA Format
640x512
Wavelength Region
MWIR

Resources & Downloads

Drawings & CAD

65196 Interface Control Document(187.3 kB, PDF)
