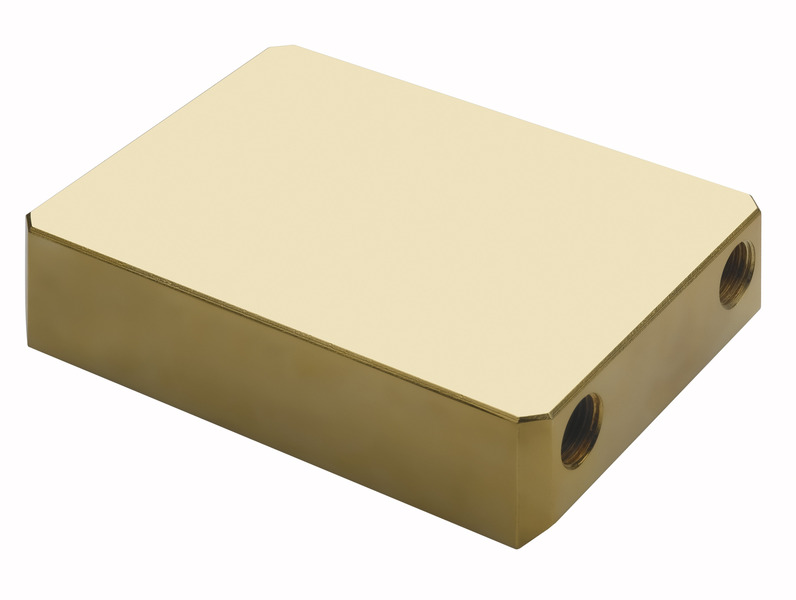

Zero Phase Shift Mirror, Water-Cooled Copper, 80x60 mm, 20 mm Edge
Specifications
Type
0° Phase Shift Mirror
Optic Material
Copper
Coating Type
ZPS
Angle of Incidence
45°
Diameter
80 x 60 mm
Edge Thickness
20 mm
S1 Radius
Plano
S2 Radius
Plano
Absorption
<0.5%
Phase Shift Tolerance
0 ±2°
Surface Quality
20-10 scratch-dig
Surface Irregularity
1 Fringe @ 633 nm
Power
2 Fringes @ 633 nm
Diameter Tolerance
+0/-0.12 mm
Thickness Tolerance
±0.25 mm
Wedge
<3' (arc minutes)
Water Cooled
Yes
