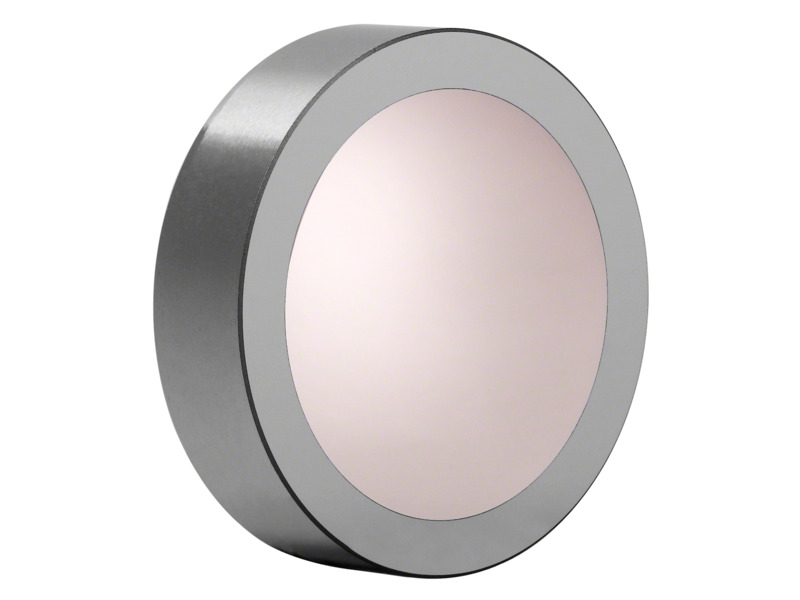

Zero Phase Shift Mirror, Silicon, 2.0 in. Diameter, 10.16 mm Edge, Trumpf
Specifications
Type
0° Phase Shift Mirror
Optic Material
Silicon
Coating Type
ZPS
Angle of Incidence
45°
Diameter
2.0 in.
Edge Thickness
10.16 mm
OEM Compatibility
Trumpf
S1 Radius
Plano
S2 Radius
Plano
Reflection
>99.5%
Phase Shift Tolerance
0 ±2°
Surface Quality
20-10 scratch-dig
Surface Irregularity
1 Fringe @ 633 nm
Power
2 Fringes @ 633 nm
Diameter Tolerance
+0/-0.12 mm
Thickness Tolerance
±0.25 mm
Wedge
<3' (arc minutes)
