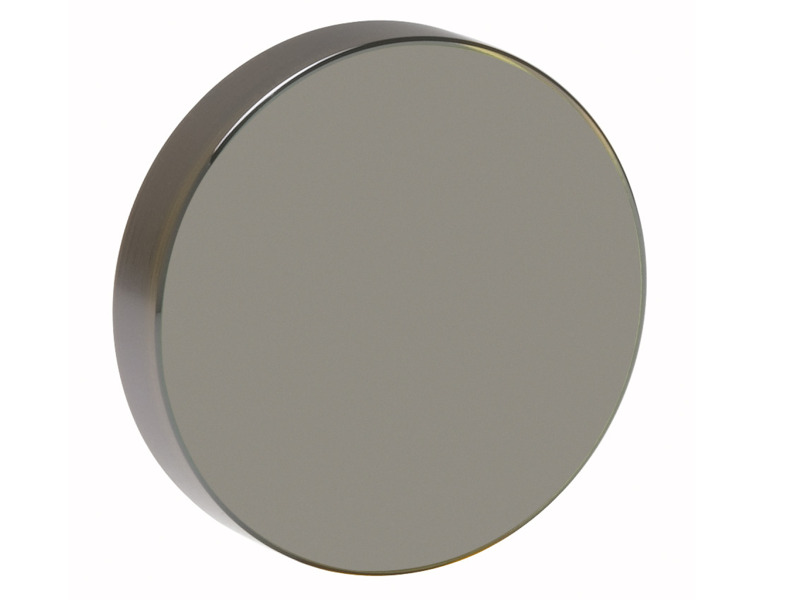

Zero Phase Shift Beam Delivery Mirror, Copper, 1.5 in. Diameter, 6.0 mm Edge
Specifications
Type
0° Phase Shift Mirror
Optic Material
Copper
Coating Type
ZPS
Angle of Incidence
45°
Diameter
1.5 in.
Edge Thickness
6.0 mm
S1 Radius
Plano
S2 Radius
Plano
Reflection
>99.5%
Phase Shift Tolerance
0 ±2°
Surface Quality
20-10 scratch-dig
Surface Irregularity
1 Fringe @ 633 nm
Power
2 Fringes @ 633 nm
Diameter Tolerance
+0/-0.12 mm
Thickness Tolerance
±0.25 mm
Wedge
<3' (arc minutes)
