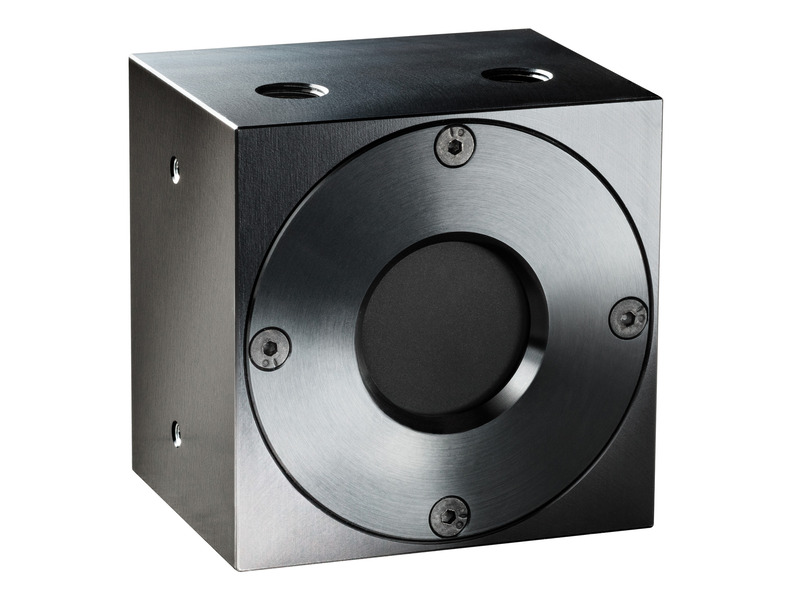

OEM Thermopile Power Sensor, 5-600 W, 26 mm, 350-2200 nm, Water-Coooled, RS232
Specifications
Spectral Range
350-2200 nm
Maximum Average Power
600 W water cooled free standing
Maximum Average Power Density
11 kW/cm² at 600 W
Minimum Power
5 W
Maximum Pulse Energy
300 J
Maximum Energy Density <100 ns
0.1 J/cm²
Maximum Energy Density 2 ms
130 J/cm²
Response Time
2.5 s
Communication
RS232, Analog
Aperture Size
Ø26 mm
Dimensions
65 x 65 x 49 mm (LxWxD)
RoHS Compliance
Yes
China RoHS Compliance
Yes
