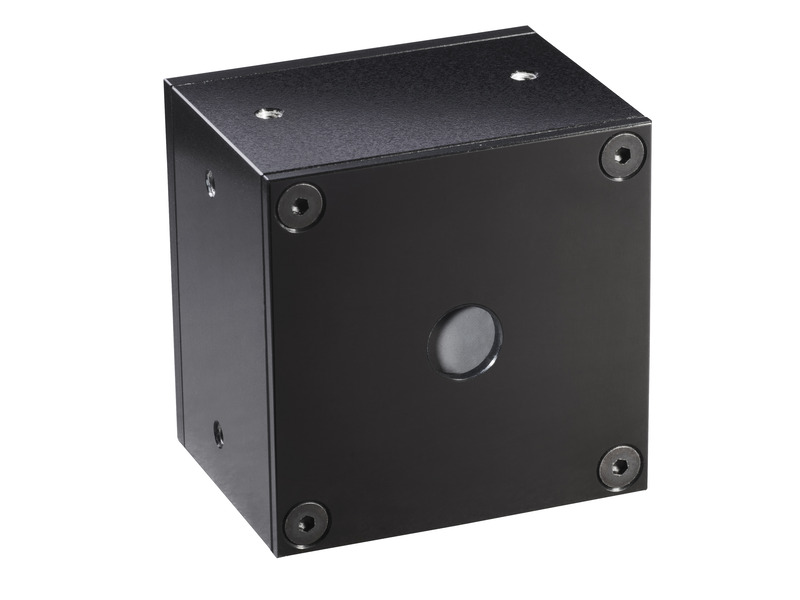

OEM Thermopile Power Sensor, 100 µW to 3 W, Ø9.5 mm, 0.19-20 µm
Specifications
Spectral Range
0.19-20 µm
Maximum Average Power
3 W
Maximum Average Power Density
1000 W/cm²
Minimum Power
100 µW
Maximum Pulse Energy
2 J
Maximum Energy Density <100 ns
0.3 J/cm²
Maximum Energy Density 2 ms
2 J/cm²
Response Time
1.8 s
Communication
RS232, Analog
Aperture Size
Ø9.5 mm
Dimensions
50 x 50 x 38 mm (LxWxD)
RoHS Compliance
Yes
China RoHS Compliance
Yes
