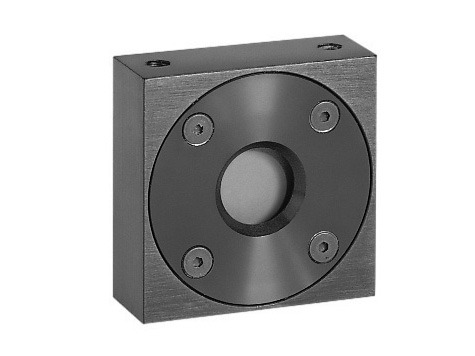

OEM Thermopile Power Sensor, 10 mW to 4/20 W, Ø12 mm, 0.19-20 µm, USB
Specifications
Spectral Range
0.19-11 µm
Maximum Average Power
20 W heat sinked
Maximum Average Power Density
23 kW/cm² at 20 W
Minimum Power
10 mW
Maximum Pulse Energy
10 J
Maximum Energy Density <100 ns
0.3 J/cm²
Maximum Energy Density 2 ms
2 J/cm²
Response Time
0.8 s
Communication
USB
Aperture Size
Ø12 mm
Dimensions
38 x 38 x 14 mm (LxWxD)
RoHS Compliance
Yes
China RoHS Compliance
Yes
