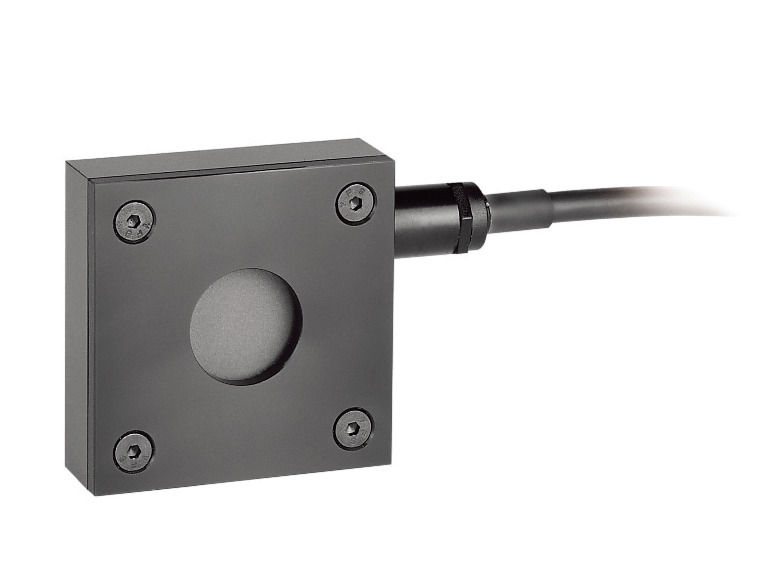

OEM Thermopile Power Sensor, 60 mW to 4/100 W, Ø18 mm, 0.19-20 µm, Ethernet

60 mW to 150 W OEM Thermopile Laser Power Sensors

Specifications

Technical Specs

Product Name
100C-UAE
Spectral Range
0.19-11 µm
Maximum Average Power
100 W heat sinked
Maximum Average Power Density
14 kW/cm² at 100 W
Minimum Power
60 mW
Maximum Energy Density <100 ns
0.3 J/cm²

Response Time
1.2 s
Communication
Ethernet
Aperture Size
Ø18 mm
Dimensions
48 x 48 x 15 mm (LxWxD)
RoHS Compliance
Yes
China RoHS Compliance
Yes

Product Name
100C-UAE
Spectral Range
0.19-11 µm
Maximum Average Power
100 W heat sinked
Maximum Average Power Density
14 kW/cm² at 100 W
Minimum Power
60 mW
Maximum Energy Density <100 ns
0.3 J/cm²

Response Time
1.2 s
Communication
Ethernet
Aperture Size
Ø18 mm
Dimensions
48 x 48 x 15 mm (LxWxD)
RoHS Compliance
Yes
China RoHS Compliance
Yes

Resources & Downloads

3D Product Models

2D Product Drawings

100C-UAE Drawing(170.3 kB, PDF)
Standard Customized Solutions (OEM) Thermal Sensors 60mW to 100W Datasheet(764.8 kB, PDF)
