AMADA Quattro EZ Mount Assembly Instructions

How to install CO2 Laser Optics (lens) at the AMADA Quattro EZ Mount

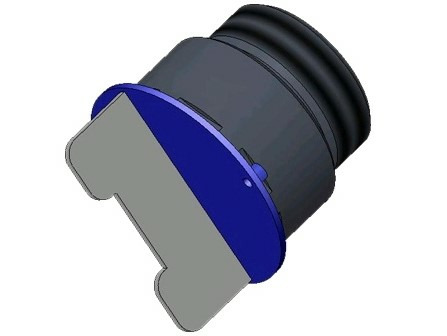

To Install/Uninstall the Unit

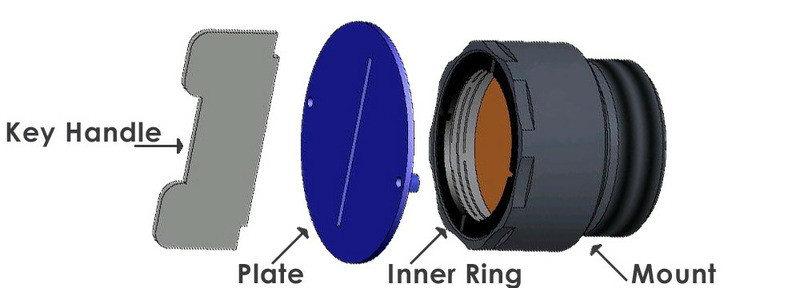

  • Assemble the key handle to the plate.
  • Attach the assembled key to the mount.
  • Install/Uninstall the mount to the cutting head.

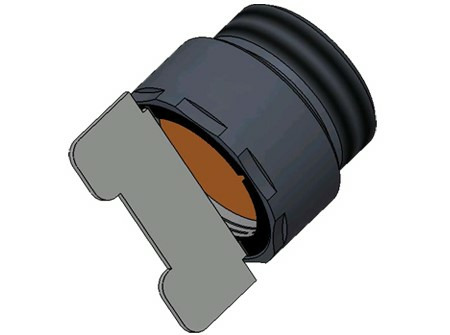

To Remove the Lens (for replacement or maintenance)

  • Attach the key handle to the inner ring.
  • Open the inner ring CW.
  • Remove the internal spring.
  • Release the lens.
