Thin Profile 1000 mW Silicon Photodiode Sensor with 10x10 mm Aperture
Thin Profile 1000 mW Silicon Photodiode Sensor with 10x10 mm Aperture

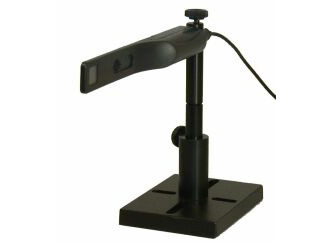

The PD300-TP silicon photodiode sensor is a thin profile laser measurement sensor with a switchable filter feature and a 10x10 mm aperture. With filter out, its spectral range is 350 to 1100 nm and its optical power measuring range from 50 pW to 3 mW. With filter in, its spectral range is 400 to 1100 nm and its power range from 2 µW to 1 W.
- 350 to 1100 nm thin profile silicon photodiode sensor
- 50 pW to 1000 mW power measurement range
- On/Off switchable filter See All Features
Features
Measuring Very Low Laser Powers with a Photodiode Sensor
In this short “Basics” video, we review in general the use of photodiode sensors for measuring very low laser powers.
Effects of Incidence Angle on Measurements
In this video, you will learn to what degree a beam’s incidence angle matters, and for which sensor types this should be taken into account.
Resources
Data Sheets
Standard Photodiode Sensors 50pW to 3W Datasheet(394.6 kB, PDF)
Catalogs
Power Sensors Catalog(11.2 MB, PDF) Laser Power & Energy Measurement and Laser Beam Analysis Catalog(27.5 MB, PDF)
Drawings & CAD
PD300-TP Drawing(91.6 kB, PDF)
Videos
Technical Articles
PD300 Photodiode Sensor Spectral Response Ophir Power/Energy Meter Calibration Procedure and Traceability/Error Analysis Laser Measurements in Materials Processing Low Frequency Power Mode Measuring Average Power of Pulsed Lasers with Photodiodes
Technical Notes
5 Situations Where Laser Performance Measurement is Necessary Effect of Ambient Conditions on Laser Measurements How do I know what range, or scale, to set my power/energy meter to? Measuring Average Power of Pulsed Lasers with Photodiodes(114.5 kB, PDF) How to Properly Select a Laser Power or Energy Sensor
