200 mW InGaAs Photodiode Power Sensor with 5 mm Aperture
200 mW InGaAs Photodiode Power Sensor with 5 mm Aperture

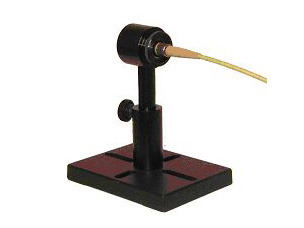

The PD300-IRG InGaAs photodiode sensor is a sensitive laser measurement sensor for telecom applications. It can accept either fiber input or free space with 5 mm aperture. It has a removable filter. Without filter, its spectral range is 900 to 1630 nm and its optical power measuring range is 20 pW to 800 µW. With filter the spectral range is 900 to 1630 nm and the power range is 1 µW to 200 mW.
- InGaAs photodiode with 900-1630 nm spectral range
- 20 pW to 200 mW power measurement range
- Comes with removable filter
- Ø5 mm aperture
- Fiber optic adapters available See All Features
Features
Measuring Very Low Laser Powers with a Photodiode Sensor
In this short “Basics” video, we review in general the use of photodiode sensors for measuring very low laser powers.
How to Measure Laser Power in Telecom Applications
Optical laser measurements in telecom applications have unique challenges. This video will introduce you to the solutions Ophir offers to help you.
