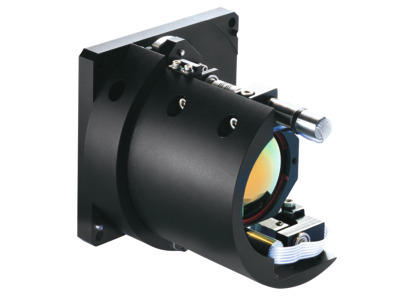

The SupIR 50/150 mm f/4.0 motorized focus MWIR imaging lens has a 50 and 150 mm focal lengths with an f-number of 4.0. This multiple field of view lens (M-FOV) is compatible with 1280x1024 SXGA format cooled MWIR cameras.
- Advanced technologies for the highest performance mid-wave focal planes
- High-efficiency 3.4 to 5 µm AR coating for MWIR wavelengths
- Passive athermalization with the highest imaging performance from -32 to +55°C
- Optimized for 1280x1024 SXGA cooled MWIR cameras with 10 μm pixel pitch
- Motorized focus and FOV switch mechanism
- Requires export license See All Features
HFOV [deg]
WFOV(50mm)
| Format | ||||
|---|---|---|---|---|
| HFOV | 640x512 | 1280x1024 | ||
| 15 µm | 11.0° | |||
| 10 µm | 7.3° | 14.6° | ||
NFOV(150mm)
| Format | ||||
|---|---|---|---|---|
| HFOV | 640x512 | 1280x1024 | ||
| 15 µm | 3.6° | |||
| 10 µm | 2.4° | 4.8° | ||
Features
High Performance Mid-Wave Focal Plane
Using advanced technologies, top-quality materials and unique coating techniques, together with innovative engineering and opto-mechanical designs, we have earned a reputation for excellent performance, durability and quality.
High-durability and Hard-carbon AR Coatings
Our highly abrasion-resistant, anti-reflective advanced optical coatings include several types of Hard Carbon coatings which provide maximum durability, energy transmission & minimal reflection. Our innovative coating technologies include:
- Physical Vapor Deposition (PVD) – Thermal heating and electron gun
- Ion Assisted Deposition (IAD) – Ion gun
- Plasma Enhanced Chemical Vapor Deposition (PECVD) for DLC coatings
Passive Athermalized Lens Assembly
Our IR imaging lens assemblies incorporate passive athermalization of the lenses and opto-mechanical system to maintain the highest imaging performance over the full operating temperature range. We use advanced materials that enable unique athermalization properties and optomechanical designs that effectively compensate for optical variations over a wide temperature range.
Applications
Commercial
Defense
Resources
Drawings & CAD
65103 Interface Control Document(894 kB, PDF)
Data Sheets
SupIR 50/150 f/4.0 Data Sheet(424.1 kB, PDF)
