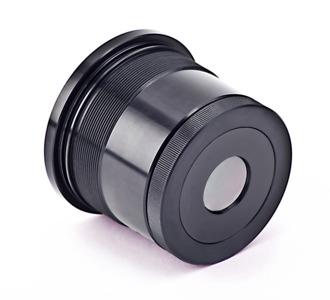

SupIR 15.7mm f/1.0, Athermalized Manual Focus

The SupIR 15.7mm f/1.0 manual focus MWIR imaging lens is a single field of view lens (1-FOV) designed for 12μm 1024 XGA format cooled MWIR cameras.

Advanced technologies for the highest performance mid-wave focal planes
Hard-carbon AR coatings for 3.6-4.9μm MWIR wavelengths
Passive athermalization with the highest imaging performance from -20 to +60°C
Compatible with 12μm pixel pitch, 1024 XGA format MWIR cameras
Providing superior performance from 20m out to infinity
Cost-effective solution for high-resolution thermal imaging and sensing

See All Features

HFOV [deg]

	Format
HFOV	320x240	384x288	640x512	1024x768
17 µm	19.9°	24.0°	40.3°
12 µm	14.1°	16.9°	28.2°	45.7°

Features

High Performance Mid-Wave Focal Plane

Using advanced technologies, top-quality materials and unique coating techniques, together with innovative engineering and opto-mechanical designs, we have earned a reputation for excellent performance, durability and quality.

High-durability and Hard-carbon AR Coatings

Our highly abrasion-resistant, anti-reflective advanced optical coatings include several types of Hard Carbon coatings which provide maximum durability, energy transmission & minimal reflection. Our innovative coating technologies include:

Physical Vapor Deposition (PVD) – Thermal heating and electron gun
Ion Assisted Deposition (IAD) – Ion gun
Plasma Enhanced Chemical Vapor Deposition (PECVD) for DLC coatings

Passive Athermalized Lens Assembly

Our IR imaging lens assemblies incorporate passive athermalization of the lenses and opto-mechanical system to maintain the highest imaging performance over the full operating temperature range. We use advanced materials that enable unique athermalization properties and optomechanical designs that effectively compensate for optical variations over a wide temperature range.
