Excimer Laser 35 W Thermopile Sensor with 50 mm Aperture
Excimer Laser 35 W Thermopile Sensor with 50 mm Aperture

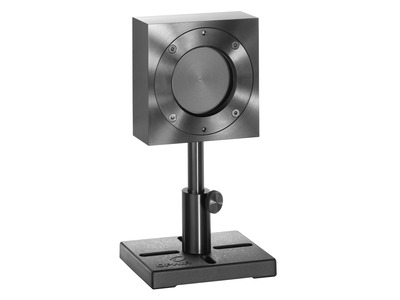

The L40(200)A-EX-50 thermopile sensor (P/N 7Z02795) is a laser power and energy thermal sensor for use with excimer lasers. It has a 50 mm aperture and can measure optical power from 300 mW to 35 W continuously and to 200 W intermittently. It can measure energy from 100 mJ to 200 J. Its EX absorber has a damage threshold of 0.5 J/cm² and covers the spectral range from 150 to 700 nm and 10.6 µm.
- EX type 150 to 700 nm and 10.6 µm absorber for excimer lasers
- 300 mW to 35 W average power measurement
- 100 mJ to 200 J pulse energy measurement
- 200 W power measurement intermittently See All Features
Features
Choosing a Thermal Sensor
In this short “Basics” video we review the use – and selection - of thermal sensors for measuring low, medium and high laser powers.
Sensors for Measuring Laser Power
In this short "Basics" video we review in general how one goes about measuring laser beam power, so that you'll have a clear understanding of what the different sensor types are, and when to use each type.
Thermal Power Sensor Accuracy
Ophir former CTO Dr. Ephraim Greenfield discusses the various factors that contribute to uncertainties in measurement when using Ophir laser power and energy meters.
Effects of Incidence Angle on Measurements
In this video, you will learn to what degree a beam’s incidence angle matters, and for which sensor types this should be taken into account.
Thermal Sensor Calibration
As the spectral sensitivity of the absorber used for the power and energy measurement is not fully linear, Ophir sensors get a high precision calibration by default with more than one wavelength.
Each thermal sensor is calibrated independently of a particular Ophir power meter with its calibration information contained in the DB15 plug. When the sensor is connected to the meter, the meter reads and interprets this information to display a calibrated reading. Each power meter is calibrated independently and has the same sensitivity as an other meter within about 2 tenths of a percent.
Unless otherwise indicated, Ophir sensors and meters should be recalibrated within 18 months after initial purchase, and then once a year after that.
