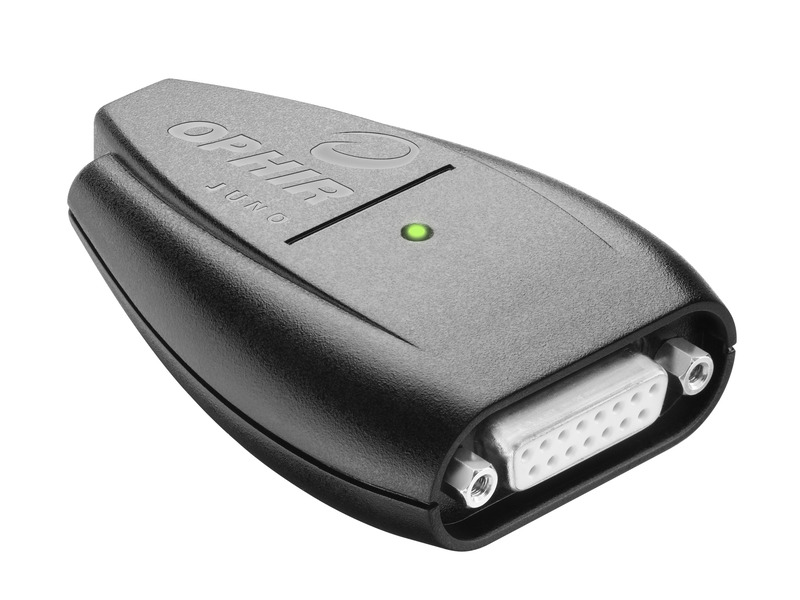

Juno USB Virtual Laser Power & Energy Meter
Juno USB Virtual Laser Power & Energy Meter
Juno is a compact virtual meter allowing connectivity of Ophir’s smart (DB-15) power and energy sensors to computers (PC, laptops and others) using USB connectivity. It allows remote monitoring and control of the meter via customer custom software, or the Ophir provided PC application.
- Plug and play with all standard Ophir smart sensors
- Position & size measurement with BeamTrack sensors
- Record every energy pulse at up to 10 kHz
- Log power and energy, average, statistics, histograms and more
- Pulsed Power measurements with Thermopile sensors
- System Integrator Tools included: LabVIEW VIs, COM Object Interface
- Use with StarViewer free Android app to turn your smartphone / tablet into a power meter See All Features
Software
PC Software & Drivers
This section describes various ways to interface the Ophir meter to your PC as well as the software options available. Check out the datasheet for more details.
The StarLab application together with an Ophir meter turns your PC or laptop into a full-fledged laser power/energy meter. Supports most Ophir laser power/energy sensors. Up to 8 sensors can be displayed at once on one PC. By using the Ophir COM Object, you can control the device from your own application. Supports the Ariel, Centauri, StarBright, StarLite, Juno, Juno+, Nova II, Vega, Pulsar-1/2/4, Quasar, EA-1 and Ariel devices.
Library supplied for a complete measurement interface with most of our USB speaking devices (Centauri, StarBright, StarLite, Juno, Juno+, Nova-II, Pulsar, Vega). Makes use of our new COM object.
StarViewer turns your Android or iOS based smartphone into a portable Ophir laser power / energy measurement monitor.
The iOS version of StarViewer works with Ariel sensor.
The Android version of StarViewer works with Ariel, as well as with Juno and Quasar interfaces.
Firmware - Juno (latest version 1.53)
Embedded Software for Juno Interface
Use StarLab to upgrade the firmware of your device. Follow the step-by-step instructions (see link above).
Features
Laser Measurement PC Interfaces
If all your laser measurement work involves a laptop or a PC, rather than a stand-alone meter, one of Ophir's direct-to-PC interfaces could be an ideal solution. These are full-fledged Laser Power and Energy meters, but instead of having a separate on-board display, the PC becomes your display. In this video you will learn about the range of PC Interfaces available from Ophir.
Introduction to the StarLab Laser Measurement Application
This video gives an overview of the StarLab application and its various functions. Part 1 of a series of video segments teaching you how to use StarLab.
StarLab 3.0: Introduction and First Steps
This video explains the various items on the StarLab screen, and shows you how to perform basic laser measurements. Part 1 of a series of video segments teaching you how to use StarLab.
StarLab 3.0: Second Steps
Sometimes we want to not only get a reading, but perform additional processing on the reading. This video shows you how to use various functions in StarLab, such as Averaging, Scale Factor, Normalize, Density, etc. Part 2 of a series of video segments teaching you how to use StarLab.
Ophir Laser Measurement Virtual Meters
If all your laser measurement work involves a laptop or a PC, one of Ophir's direct-to-PC virtual meters could be an ideal solution. These are full-fledged Laser Power and Energy meters, and - together with the sensor and Ophir’s powerful StarLab software application - turn your PC into a full-function, multi-channel laser measurement workstation.
In this webinar, you will learn about the range of virtual meters and interface options available from Ophir.
Resources
Data Sheets
Juno Datasheet(824.7 kB, PDF)
Drawings & CAD
Juno Drawing(216.1 kB, PDF)
Manuals
StarLab User Manual(5.5 MB, PDF)
Technical Notes
StarViewer User Note(711 kB, PDF) 5 Situations Where Laser Performance Measurement is Necessary How do I know what range, or scale, to set my power/energy meter to? When you log energy from multiple sensors in parallel using StarLab Installing LabVIEW support for Ophir Power Meters and PC Interfaces Longer Length Sensor Cables Power Meter System Integration
Catalogs
PC Interface Meter Brochure(562.3 kB, PDF) Power/Energy Meter Catalog(25.5 MB, PDF) Laser Power & Energy Measurement and Laser Beam Analysis Catalog(27.5 MB, PDF) Power Meters Catalog(6.5 MB, PDF)
Technical Articles
Main Memory Volatility Statement for Juno Meter(204.8 kB, PDF) Low Frequency Power Mode Ophir Power/Energy Meter Calibration Procedure and Traceability/Error Analysis Laser Measurements in Materials Processing Power and Energy Meters: From Sensors to PC
