1.5 inch High Speed Response, Multi-functional Integrating Sphere
1.5 inch High Speed Response, Multi-functional Integrating Sphere

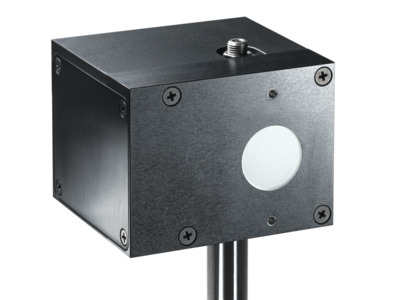

The IS1.5-IRG-FPD-800 multifunctional integrating sphere provides multiple measurement capabilities in a single integrating sphere device ideal for LIV testing and other divergent sources (e.g. VCSEL) measurements. The sphere includes a precision photodiode for calibrated average power measurement, a fast photodiode for pulse shape characterization on an oscilloscope and a built in SMA fiber adapter.
- Fast photodiode for pulse shape characterization of divergent sources (e.g. VCSEL)
- Internal diameter of 1.5 in. to minimize the pulse stretching effect
- Pulse width as low as 6ns
- Built in SMA fiber adapter for connection to a spectrometer
- 20 mm input port enabling long working distance
- Accepts beams with divergence angles up to 60° See All Features
Software
Simple Measurement.vi
Program for those who want to use Centauri connected to IS1.5-VIS-FPD-800 or IS1.5-IRG-FPD-800 integrating sphere with LabVIEW 2017.
Note: In order to work with the application example, it is necessary to install the LabVIEW runtime engine 2017, downloadable from the National Instruments website.
Features
Multifunction Integrating Sphere IS1.5-VIS-FPD-800
In many applications such as VCSEL-based LIDAR and facial recognition systems, there is a need to measure multiple parameters of the laser beam at the same time, such as power, spectrum, and temporal pulse shape. Also, capturing and correctly measuring these widely-diverging and slowly-pulsing beams can be very challenging. The Ophir IS1.5-VIS-FPD-800 Multifunction Integrating Sphere sensor helps you meet these challenges. Get an overview in this video.
Resources
Data Sheets
Integrating Spheres NIR 1.5” High Speed Response Datasheet(224.9 kB, PDF)
Drawings & CAD
IS1.5-IRG-FPD Drawing(26.4 kB, PDF)
Technical Notes
User Notes IS1.5-IRG-FPD-800(524.6 kB, PDF)
Catalogs
Power Sensors Catalog(11.2 MB, PDF) Laser Power & Energy Measurement and Laser Beam Analysis Catalog(27.5 MB, PDF)
