Broadband 600 W Fan-Cooled Thermopile Sensor with 65 mm Aperture
Broadband 600 W Fan-Cooled Thermopile Sensor with 65 mm Aperture

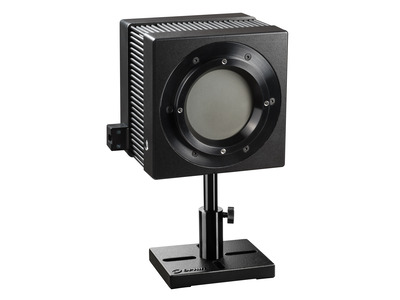

The FL600A-BB-65 thermopile sensor is a general purpose fan cooled laser power and energy thermal sensor with a 65 mm aperture. It can measure optical power from 5 W to 600 W and energy from 600 mJ to 600 J. It has the spectrally flat broadband BB coating and covers the spectral range from 0.19 to 11 µm.
- Broadband 0.19 to 11 µm absorber
- Fan-cooled 5 to 600 W continuous power measurement
- 0.6 to 600 J pulse energy measurement See All Features
Features
FL600A High Power Fan Cooled Laser Sensors
The FL600A-BB-65 and FL600A-LP1-65 are compact sensors that can measure very high laser power levels up to 1100W with no need for water cooling. This is almost twice the power of competitive devices.
Measuring Ultra High Power Laser Beams
Laser beams with powers of many tens of Kilowatts are becoming more and more common in today's applications, industrial as well as research. This video will discuss the technical challenges in measuring such lasers, and will show you a range of solutions now available from Ophir for measuring up to 100KW -- safely, and accurately.
Choosing a Thermal Sensor
In this short “Basics” video we review the use – and selection - of thermal sensors for measuring low, medium and high laser powers.
Sensors for Measuring Laser Power
In this short "Basics" video we review in general how one goes about measuring laser beam power, so that you'll have a clear understanding of what the different sensor types are, and when to use each type.
Thermal Power Sensor Accuracy
Ophir former CTO Dr. Ephraim Greenfield discusses the various factors that contribute to uncertainties in measurement when using Ophir laser power and energy meters.
Effects of Incidence Angle on Measurements
In this video, you will learn to what degree a beam’s incidence angle matters, and for which sensor types this should be taken into account.
Thermal Sensor Calibration
As the spectral sensitivity of the absorber used for the power and energy measurement is not fully linear, Ophir sensors get a high precision calibration by default with more than one wavelength.
Each thermal sensor is calibrated independently of a particular Ophir power meter with its calibration information contained in the DB15 plug. When the sensor is connected to the meter, the meter reads and interprets this information to display a calibrated reading. Each power meter is calibrated independently and has the same sensitivity as an other meter within about 2 tenths of a percent.
Unless otherwise indicated, Ophir sensors and meters should be recalibrated within 18 months after initial purchase, and then once a year after that.
