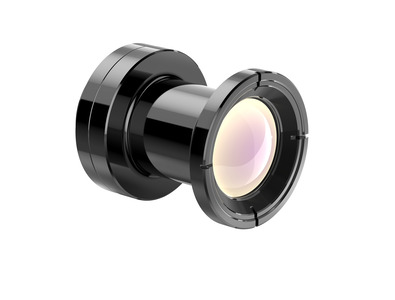

SupIR 6.5 mm f/1.0 Fixed Focus LWIR HD Imaging Lenses

The SupIR 6.5mm f/1.0 fixed focus LWIR imaging lens has a 6.5 mm focal length with an f-number of 1.0. This single field of view lens (1-FOV) is designed for 1024x768 XGA format uncooled LWIR cameras.

Advanced technologies for the highest performance long wave focal planes
LWIR High-durability AR coating for 8 to 12 µm
Passive athermalization with the highest imaging performance from -40 to +80°C
Compatible with 10 & 12 μm pixel pitch, 1024x768 XGA format LWIR cameras
Providing superior performance from 1.6 m out to infinity
Requires export license

See All Features

HFOV [deg]

	Format
Pitch	320x240	384x288	640x480	1024x768
17 µm	45.6°	53.8°	82°
12 µm	32.9°	39.1°	61.8°	90°
10 µm	27.6°	32.9°	52.9°	78.2°

Features

High Performance Long Wave Focal Plane

Using advanced technologies, top-quality materials and unique coating techniques, together with innovative engineering and opto-mechanical designs, we have earned a reputation for excellent performance, durability and quality.

High-durability and Hard-carbon AR Coatings

Our highly abrasion-resistant, anti-reflective advanced optical coatings include several types of Hard Carbon coatings which provide maximum durability, energy transmission & minimal reflection. Our innovative coating technologies include:

Physical Vapor Deposition (PVD) – Thermal heating and electron gun
Ion Assisted Deposition (IAD) – Ion gun
Plasma Enhanced Chemical Vapor Deposition (PECVD) for DLC coatings

Passive Athermalized Lens Assembly

Our IR imaging lens assemblies incorporate passive athermalization of the lenses and opto-mechanical system to maintain the highest imaging performance over the full operating temperature range. We use advanced materials that enable unique athermalization properties and optomechanical designs that effectively compensate for optical variations over a wide temperature range.
