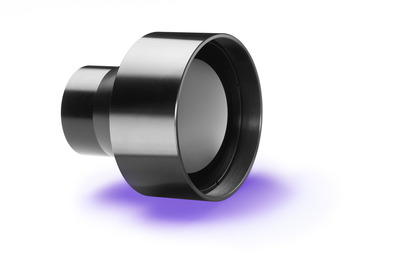

SupIR 100 mm f/1.4 Fixed 1-FOV LWIR SXGA Imaging Lens

The SupIR 100mm f/1.4 fixed focus LWIR imaging lens has a fixed 100 mm focal length with an f-number of 1.4. This single field of view lens (1-FOV) is designed for uncooled LWIR cameras.

Advanced technologies for the highest performance long wave focal planes
Compatible with 12 & 17 μm pixel pitch, 1280x1024 SXGA format LWIR cameras
LWIR hard-carbon AR coating for 8-12 µm
Passive athermalization with the highest imaging performance from -30 to +85°C
Cost-effective solution for high-resolution thermal imaging and sensing

See All Features

HFOV [deg]

	Format
Pitch	320x240	384x288	640x480	1024x768	1280x1024
17 µm	3.1°	3.7°	6.2°	9.8°
12 µm	2.2°	2.6°	4.4°	7.0°	8.7°

Features

High Performance Long Wave Focal Plane

Using advanced technologies, top-quality materials and unique coating techniques, together with innovative engineering and opto-mechanical designs, we have earned a reputation for excellent performance, durability and quality.

High-durability and Hard-carbon AR Coatings

Our highly abrasion-resistant, anti-reflective advanced optical coatings include several types of Hard Carbon coatings which provide maximum durability, energy transmission & minimal reflection. Our innovative coating technologies include:

Physical Vapor Deposition (PVD) – Thermal heating and electron gun
Ion Assisted Deposition (IAD) – Ion gun
Plasma Enhanced Chemical Vapor Deposition (PECVD) for DLC coatings

Passive Athermalized Lens Assembly

Our IR imaging lens assemblies incorporate passive athermalization of the lenses and opto-mechanical system to maintain the highest imaging performance over the full operating temperature range. We use advanced materials that enable unique athermalization properties and optomechanical designs that effectively compensate for optical variations over a wide temperature range.
