CLEARMagic™ ZnSe Plano-Convex Lenses

With guaranteed ultra low absorption (ULA) and other unique characteristics, Our “Clear Magic” lenses guarantee an ultra low absorption maximum of 0.13%, offering the longest lifetime, excellent durability, and maximum focus stability. These plano-convex lenses are more suitable for high turnover cutting applications including cutting and welding of a wide range of materials when the cost is often more important than the level of accuracy.

Plano-Convex lens shape for high turnover laser cutting applications
Clear Magic™ coating with >99.37% transmission
High IR transmission Zinc Selenide (ZnSe) substrates
Approved and used by leading OEMs

See All Features

Features

Plano-Convex Lenses

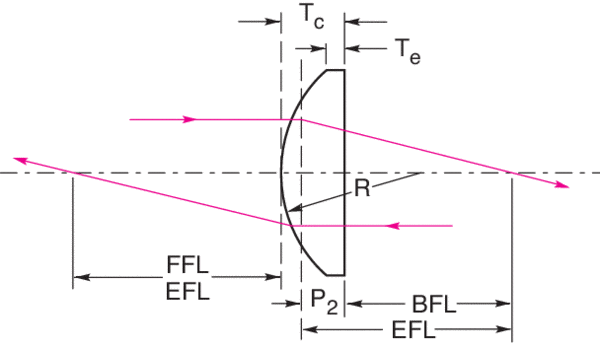

Plano-Convex lenses have one flat surface and one curved surface. These lenses are more suitable for high turnover cutting applications including cutting and welding of a wide range of materials (metals, wood, ceramics, plastics, and composites) when the cost is often more important than the level of accuracy. When cutting steels, and other thicker materials, a Plano-Convex Lens provides a greater width of cut which enables the laser's Oxygen Assist to enter the cut and ease the cutting process. In addition, Plano-Convex lenses give a greater depth of field needed to maintain a taperless edge when cutting thicker materials.

CO<sub>2</sub> Focusing Lens Coatings

Our standard Duralens™ AR coating features <0.2% absorption rate, HeNe transparency, a standard product lifetime, and a decent cost/benefit ratio. With guaranteed low absorption (LA) and other unique characteristics, the Black Magic™ coating has a lower absorption rate, but it is not transparent, although it is more durable with an extended product lifetime. The ultra low absorption (ULA) Clear Magic™ coating, as its name suggests, it transparent, and has an ultra-low absorption rate of <0.13%, as well as an extended product lifetime, but for a higher price. Both the Black Magic™ and the Clear Magic™ coatings are made from a radioactive-free coating.
