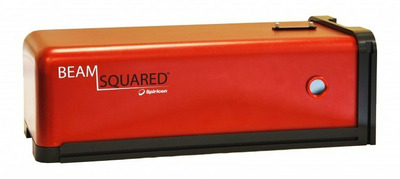

M² Beam Analyzer for XC-130 and SP204S
M² Beam Analyzer for XC-130 and SP204S
The BeamSquared® -A includes BeamSquared software, software license, and optical train for use with your XC-130, SP204S cameras or with other compatible cameras. Compatible camera must be returned to factory for upgrade at no additional charge. If, upon inspection the camera does not meet specifications, a repair change will be applicable.
- BeamSquared software and optical train for XC-130 and SP204S cameras
- Automatically measure your beam quality in under 1 minute
- Specifically developed for continuous usage
- Unequaled accuracy using patented Ultracal™ Calibration
- Use with your XC-130, SP204S cameras or with other compatible cameras See All Features
Software
BeamSquared
BeamSquared is our full-function software with an extensive set of ISO M2 measurements with the ease-of-use and flexibility that customers have come to expect..
Features
BeamSquared M² Propagation Analyzer
Introducing the BeamSquared, a compact and fully automated tool for measuring the propagation characteristics of continuous wave and pulsed laser systems from the UV to NIR to Telecom wavelengths.
BeamSquared Automated ISO Set-Up
This video describes the BeamSquared software Auto ISO measurement feature, which makes obtaining an ISO compliant beam measurement as easy as "align and click."
Resources
Data Sheets
BeamSquared® Datasheet(429.6 kB, PDF)
Drawings & CAD
BeamSquared Drawing(887.2 kB, PDF)
Manuals
BeamSquared User Guide(6.1 MB, PDF) BeamSquared Motion Utility Quick Start Guide(562.6 kB, PDF)
Catalogs
Laser Beam Profilers Catalog (7.6 MB, PDF) Laser Power & Energy Measurement and Laser Beam Analysis Catalog(27.5 MB, PDF)
Technical Articles
How to Easily Speed Up End-of-line Quality Testing for Lasers M2 Beam Propagation: Why So Many Different Approaches to Measurement Instrumentation?
