0.2-30 kW Max Power Water Cooled Sensors
These water cooled thermopile laser sensors are designed to measure high optical power levels up to 30 kW. We also offer short exposure sensors for measuring high power lasers without requiring water-cooling.

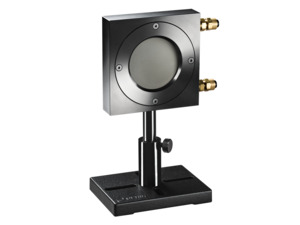

L250W-BB-50 Broadband 250W Water-Cooled Ø50mm Thermal Sensor
- Broadband 0.19 to 11 µm absorber
- Water-cooled for 1 to 250 W average power measurement
- 120 mJ to 200 J energy measurement
Viewing 5 of 2 Products | View All 2 Products

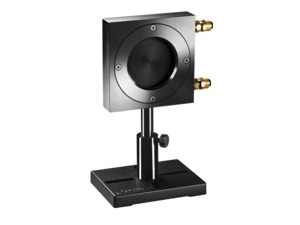

L300W-LP2-50 Long Pulse 300W Water-Cooled Ø50mm Thermal Sensor
- Long pulse 350-2200 nm and 10.6 µm absorber
- Water-cooled for 0.5 to 300 W average power measurement
- 200 mJ to 300 J energy measurement
1000W-BB-34 Broadband 1000W Water-Cooled Ø34mm Thermal Sensor
- Broadband 0.19 to 20 µm absorber
- Water-cooled for 5 to 1000 W average power measurement
- 400 mJ to 300 J energy measurement

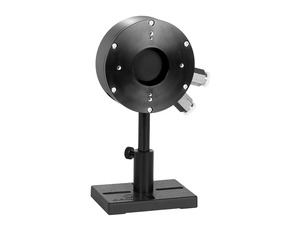

1000W-LP2-34 Long Pulse 1000W Water-Cooled Ø34mm Thermal Sensor
- Long pulse 350-2200 nm absorber
- Water-cooled for 5 to 1000 W average power measurement
- 400 mJ to 300 J energy measurement

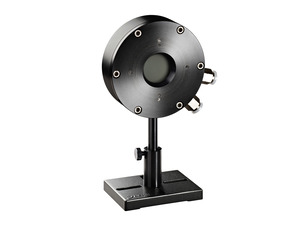

1000WP-BB-34 Broadband 1000W Noncontaminating Water-Cooled Ø34mm Thermal Sensor
- Broadband 0.19 to 20 µm absorber
- Water-cooled for 5 to 1000 W average power measurement
- 400 mJ to 300 J energy measurement

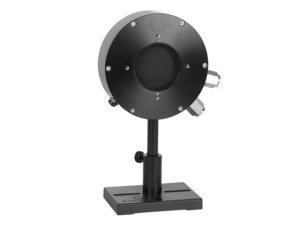

L1500W-BB-50 Broadband 1500W Water-Cooled Ø50mm Thermal Sensor
- Broadband 0.19 to 20 µm absorber
- Water-cooled for 15 to 1500 W average power measurement
- 500 mJ to 200 J energy measurement
L1500W-LP2-50 Long Pulse 1500W Water-Cooled Ø50mm Thermal Sensor
- Long pulse 350-2200 nm absorber
- Water-cooled for 15 to 1500 W average power measurement
- 500 mJ to 200 J energy measurement
L2000W-BB-120 Broadband 2000W Water-Cooled Ø120mm Thermal Sensor
- Broadband 0.19 to 20 µm absorber
- Water-cooled for 1 to 2000 W average power measurement
- 6 to 6000 J energy measurement

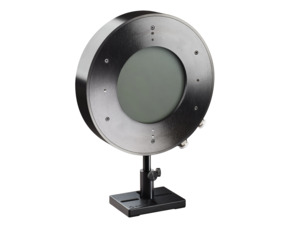

L2000W-PF-120 High Peak Power 2000W Water-Cooled Ø120mm Thermal Sensor
- PF high peak power 300 to 2200 nm absorber
- Water-cooled for 1 to 2000 W average power measurement
- 6 to 6000 J energy measurement

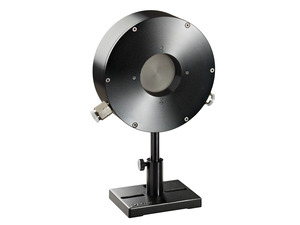

5000W-BB-50 Broadband 5000W Water-Cooled Ø50mm Thermal Sensor
- Broadband 0.19 to 11 µm absorber
- Water-cooled for 20 to 5000 W average power measurement
- 50 mm diameter aperture
Viewing 5 of 2 Products | View All 2 Products

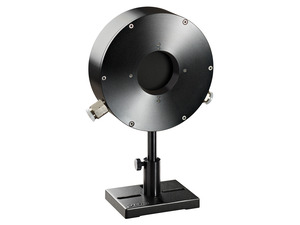

5000W-LP2-50 Long Pulse 5000W Water-Cooled Ø50mm Thermal Sensor
- Long pulse 350-2200 nm absorber
- Water-cooled for 20 to 5000 W average power measurement
- 50 mm diameter aperture

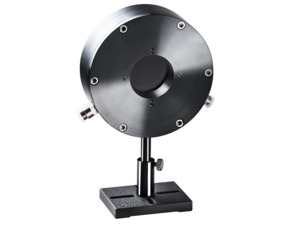

5000WP-LP2-50 Long Pulse 5000W Noncontaminating Water-Cooled Ø50mm Thermal Sensor
- Long pulse 350-2200 nm absorber
- Water-cooled for 20 to 5000 W average power measurement
- Specially designed for noncontaminating water flow

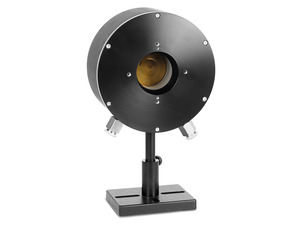

10K-W-BB-45 Broadband 11kW Water-Cooled Ø45mm Thermal Sensor
- Broadband 800-2000 nm and 10.6 µm absorber with beam deflector
- Water-cooled for 0.1 to 11 kW average power measurement
- 45 mm diameter aperture
IPM-10KW 0.9-1.1µm, 10.6µm Water-Cooled Ø45mm Thermal Sensor
- ISO17025 NIST & PTB traceable calibration
- Extra protection with IPM-Shutter10
- Easy integration into modern automation systems using RS232 or with IP-COM with EtherNet/IP, Profinet

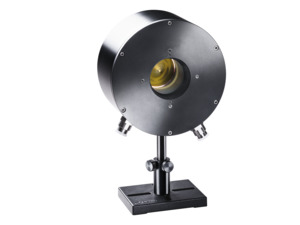

15K-W-BB-45 Broadband 15kW Water-Cooled Ø45mm Thermal Sensor
- Broadband 800-2000 nm and 10.6 µm absorber with beam deflector
- Water-cooled for 0.1 to 15 kW average power measurement
- Deflecting cone and annular absorber for power densities to 10 kW/cm²
20K-W-BB-55 Broadband 20kW Water-Cooled Ø55mm Thermal Sensor
- Broadband 800-2000 nm and 10.6 µm absorber with beam deflector
- Water-cooled for 0.1 to 20 kW average power measurement
- Deflecting cone and annular absorber for power densities to 10 kW/cm²
30K-W-BB-74 Broadband 30kW Water-Cooled Ø74mm Thermal Sensor
- Broadband 800-2000 nm absorber with beam deflector
- Water-cooled for 0.1 to 30 kW average power measurement
- Deflecting cone and annular absorber for power densities to 10 kW/cm²
Page 1 of 1
