Pulsed Power Sensors

When the full Helios solution is not needed, Ophir has a number of sensors designed for short 0.3 – 4s exposure high power measurement. These can measure energy with any Ophir meter or PC interface and the power can be obtained from the energy and pulse exposure time. With the Centauri and StarBright meters or Juno and Juno+ PC interfaces, the user can input the exposure time and get the reading directly in units of power.

Laser Sensor Finder

L40(250)A-LP2-50 Long Pulse 40/250W Air-Cooled Ø50mm Thermal Sensor

LP2 type 250 to 2200 nm absorber for long pulse lasers
300 mW to 40 W average power measurement
100 mJ to 10,000 J pulse energy measurement

1 Product

L40(500)A-LP2-DIF-35 Long Pulse 40/500W Air-Cooled Ø35mm Thermal Sensor with Diffuser

LP2 type 440 to 2200 nm absorber for long pulse lasers
300 mW to 40 W average power measurement
100 mJ to 2000 J pulse energy measurement

1 Product

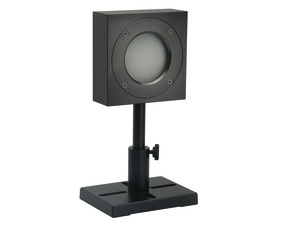

L40(250)A-BB-50 Broadband 35/250W Air-Cooled Ø50mm Thermal Sensor

Broadband 0.19 to 11 µm absorber
300 mW to 35 W average power measurement
100 mJ to 4000 J pulse energy measurement

2 Products

	Compare	Description	Compatibility	Avail.	Price
		7Z07110 Thermal Laser Power Sensor, BB Type, 300 mW to 35/250 W, Ø50 mm, 0.19-11 µm	UNIVERSAL		$1,552
		7Z07110D Thermal Laser Power Sensor, BB Type, 300 mW to 35/250 W, Ø50 mm, 0.19-11 µm with 12m cable	UNIVERSAL		$1,722
