8-100 W Max Power Convection Cooled Thermopile Sensors
These convection cooled thermopile laser sensors are designed to measure low to medium continuous optical powers up to 100 W and intermittently up to 500 W. Choose a fan-cooled or water-cooled sensor for higher optical power levels.

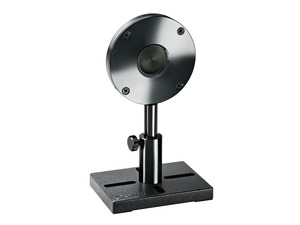

L30A-EX-10MM Excimer Laser 8W Air-Cooled Ø26mm Thermal Sensor
- EX type 150 to 700 nm and 10.6 µm absorber
- 80 mW to 8 W average power measurement
- 20 mJ to 30 J pulse energy measurement

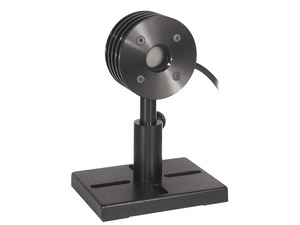

10A-P Short Pulse 10W Air-Cooled Ø16mm Thermal Sensor
- P type 0.15-8 µm volume absorber for short pulse lasers
- 40 mW to 10 W average power measurement
- 10 mJ to 10 J pulse energy measurement

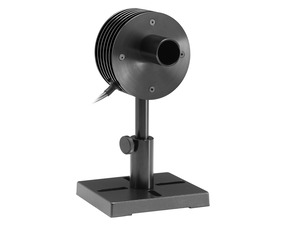

12A Broadband 12W Air-Cooled Ø16mm Thermal Sensor
- Broadband 0.19-20 µm absorber
- 2 mW to 12 W average power measurement
- 1 mJ to 30 J pulse energy measurement
Viewing 5 of 2 Products | View All 2 Products

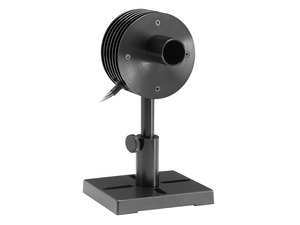

12A-P Short Pulse 12W Air-Cooled Ø16mm Thermal Sensor
- P type 0.15-8 µm volume absorber for short pulse lasers
- 2 mW to 12 W average power measurement
- 1 mJ to 30 J pulse energy measurement
15(50)A-PF-DIF-18 High Peak Power 15/50W Air-Cooled Ø17.5mm Thermal Sensor with Diffuser
- PF type 240-2200 nm high energy density absorber with diffuser
- 140 mW to 15 W average power measurement
- 60 mJ to 200 J pulse energy measurement
30A-P-17 Short Pulse 30W Air-Cooled Ø17mm Thermal Sensor
- P type 0.15-8 µm volume absorber for short pulse lasers
- 60 mW to 30 W average power measurement
- 40 mJ to 30 J pulse energy measurement
30A-N-18 YAG Laser 30W Air-Cooled Ø17.5mm Thermal Sensor
- N type volume absorber for 532 and 1064 nm YAG lasers
- 60 mW to 30 W average power measurement
- 30 mJ to 200 J pulse energy measurement

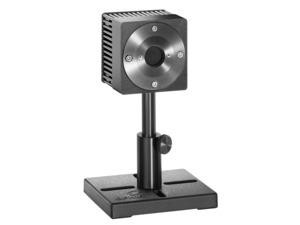

30(150)A-LP2-18 Long Pulse 30/150W Air-Cooled Ø17.5mm Thermal Sensor
- LP2 type 250 to 2200 nm absorber for long pulse lasers
- 30 mW to 30 W average power measurement
- 20 mJ to 300 J pulse energy measurement

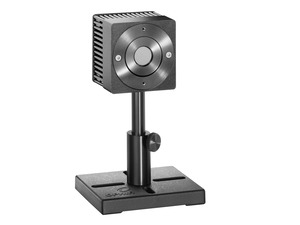

30(150)A-SV-17 High Damage Threshold 30/150W Air-Cooled Ø17mm Thermal Sensor
- Continuous operation with ultra-short pulses without diffuser
- Ultra-high damage threshold
- No water cooling
30(150)A-HE-17 High Pulse Energy 30/150W Air-Cooled Ø17mm Thermal Sensor
- He type absorber with high pulse damage threshold
- 50 mW to 30 W average power measurement
- 60 mJ to 200 J pulse energy measurement
30(150)A-HE-DIF-17 High Pulse Energy 30/150W Air-Cooled Ø17mm Thermal Sensor with Diffuser
- HE high pulse damage threshold absorber with diffuser
- 50 mW to 30 W average power measurement
- 60 mJ to 200 J pulse energy measurement

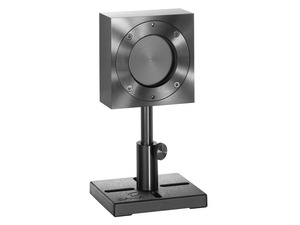

L40(200)A-EX-50 Excimer Laser 35/200W Air-Cooled Ø50mm Thermal Sensor
- EX type 150 to 700 nm and 10.6 µm absorber for excimer lasers
- 300 mW to 35 W average power measurement
- 100 mJ to 200 J pulse energy measurement

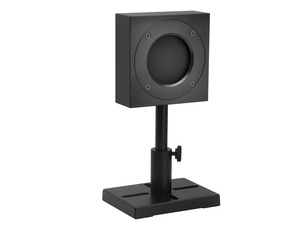

L40(250)A-LP2-50 Long Pulse 40/250W Air-Cooled Ø50mm Thermal Sensor
- LP2 type 250 to 2200 nm absorber for long pulse lasers
- 300 mW to 40 W average power measurement
- 100 mJ to 10,000 J pulse energy measurement

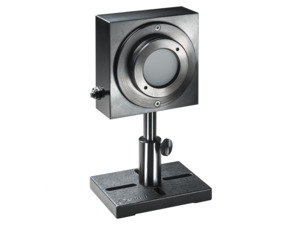

L40(500)A-LP2-DIF-35 Long Pulse 40/500W Air-Cooled Ø35mm Thermal Sensor with Diffuser
- LP2 type 440 to 2200 nm absorber for long pulse lasers
- 300 mW to 40 W average power measurement
- 100 mJ to 2000 J pulse energy measurement

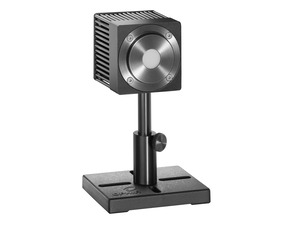

50A-PF-DIF-18 High Peak Power 50W Air-Cooled Ø17.5mm Thermal Sensor with Diffuser
- PF type 240-2200 nm high energy density absorber with diffuser
- 140 mW to 50 W average power measurement
- 60 mJ to 200 J pulse energy measurement

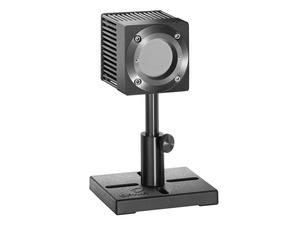

L50(150)A-PF-35 High Peak Power 50/150W Air-Cooled Ø35mm Thermal Sensor
- PF type 0.15-20 µm high peak power absorber
- 100 mW to 50 W average power measurement
- 50 mJ to 300 J pulse energy measurement

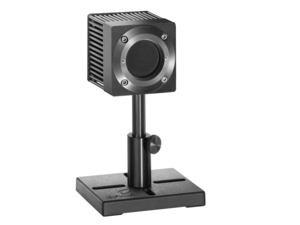

L50(150)A-LP2-35 Long Pulse 50/150W Air-Cooled Ø35mm Thermal Sensor
- LP2 type 250 to 2200 nm absorber for long pulse lasers
- 100 mW to 50 W average power measurement
- 40 mJ to 3000 J pulse energy measurement

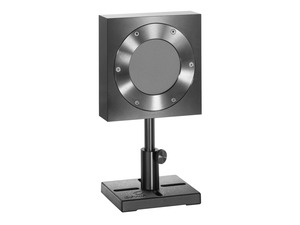

L50(300)A-PF-65 High Peak Power 50/300W Air-Cooled Ø65mm Thermal Sensor
- PF type 0.15-20 µm high peak power absorber
- 400 mW to 50 W average power measurement
- 200 mJ to 300 J pulse energy measurement

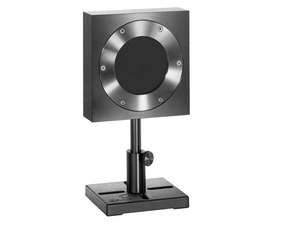

L50(300)A-LP2-65 Ø65 mm Aperture 0.2-1000 J Intense Pulsed Light Sensor
- 250-2200 nm LP2 absorber
- Window removed for accurate measurement of air coupled IPL sources
- 0.2 to 1000 J energy measurement range

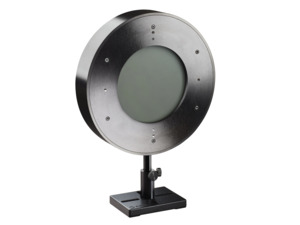

L100(500)A-PF-120 High Peak Power 100/500W Air-Cooled Ø120mm Thermal Sensor
- PF type 0.15-20 µm high peak power absorber
- 1000 mW to 100 W average power measurement
- 6 to 6000 J pulse energy measurement
Page 1 of 2
