BeamGage® Camera Based Laser Beam Profilers

See your beam as never before with BeamGage®. The camera-based beam profiling system consists of a camera and analysis software. Often times, this system will need to be used with beam attenuation or beam sizing accessories, depending on your laser application. The advantage to camera-based beam profiling is the real-time viewing and measuring of a laser’s structure.

Laser Beam Profiler Finder
Show Filters:
Showing 1 - 11 of 11 Items
View:

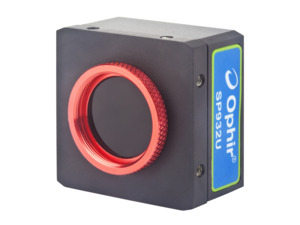

SP932U USB 2048x1536 CMOS 190-1100 nm Laser Beam Profiler

SP932U USB 2048x1536 CMOS 190-1100 nm Laser Beam Profiler

  • 2048 x 1536 pixel resolution with a 3.45 µm pixel pitch
  • 24 fps at full resolution
  • New "Blooming Correction" algorithm at NIR and no smearing
2 Products
Compare Description Avail. Price
SP932U USB 2048x1536 CMOS 190-1100 nm Laser Beam Profiler SP90606 BeamGage Standard software
SP932U USB 2048x1536 CMOS 190-1100 nm Laser Beam Profiler SP90607 BeamGage Professional software
Viewing 5 of 2 Products | View All 2 Products
SP204S USB 2472x2064 CMOS 190-1100 nm, Highest Resolution Laser Beam Profiler

SP204S USB 2472x2064 CMOS 190-1100 nm, Highest Resolution Laser Beam Profiler

  • 2472 x 2064 resolution with a 2.74 µm pixel pitch
  • 37 fps at full resolution
  • BeamGage Standard or Professional software included
2 Products
Compare Description Avail. Price
SP204S USB 2472x2064 CMOS 190-1100 nm, Highest Resolution Laser Beam Profiler SP90647 SP204S Laser Beam Profiler, 2472x2064 px, 37 fps, 190-1110 nm, USB 3.0, BeamGage Standard
SP204S USB 2472x2064 CMOS 190-1100 nm, Highest Resolution Laser Beam Profiler SP90648 SP204S Laser Beam Profiler, 2472x2064 px, 37 fps, 190-1100 nm, USB 3.0, BeamGage Professional
Viewing 5 of 2 Products | View All 2 Products
SP402S USB Large Format 4512 x 4512 CMOS 190-1100 nm, Highest Resolution Laser Beam Profiler

SP402S USB Large Format 4512 x 4512 CMOS 190-1100 nm, Highest Resolution Laser Beam Profiler

  • Large 1.1” format
  • 4512 x 4512 pixel resolution with a 2.74 µm pitch
  • USB 3.1 communication interface
2 Products
Compare Description Avail. Price
SP402S USB Large Format 4512 x 4512 CMOS 190-1100 nm, Highest Resolution Laser Beam Profiler SP90642 SP402S Laser Beam Profiler, 4512x4512 px, 11 fps, 190-1100 nm, USB 3.1, BeamGage Standard
SP402S USB Large Format 4512 x 4512 CMOS 190-1100 nm, Highest Resolution Laser Beam Profiler SP90643 SP402S Laser Beam Profiler, 4512x4512 px, 11 fps, 190-1100 nm, USB 3.1, BeamGage Professional
Viewing 5 of 2 Products | View All 2 Products
SP504S GigE 5120x5120 340-1100 nm Laser Beam Profiler

SP504S GigE 5120x5120 340-1100 nm Laser Beam Profiler

  • 23mm x 23mm imager format
  • Highest resolution
  • CMOS, Global shutter
1 Product
SP203P USB 2048x1536 CMOS 1440-1605 nm Laser Beam Profiler with BeamGage Software

SP203P USB 2048x1536 CMOS 1440-1605 nm Laser Beam Profiler with BeamGage Software

  • 2048 x 1536 pixels with a with a 60 µm pitch
  • 24 fps at full resolution
  • BeamGage Standard or Professional software included
2 Products
Compare Description Avail. Price
SP203P USB 2048x1536 CMOS 1440-1605 nm Laser Beam Profiler with BeamGage Software SP90636 SP203P Laser Beam Profiler, 2048x1536 px, 24 fps, 1440-1605 nm, USB 3.0, BeamGage Standard
SP203P USB 2048x1536 CMOS 1440-1605 nm Laser Beam Profiler with BeamGage Software SP90637 SP203P Laser Beam Profiler, 2048x1536 px, 24 fps, 1440-1605 nm, USB 3.0, BeamGage Professional
Viewing 5 of 2 Products | View All 2 Products
LT665-1550 USB 2752x2192 CCD 1440-1605 nm Laser Beam Profiler

LT665-1550 USB 2752x2192 CCD 1440-1605 nm Laser Beam Profiler

  • 2752 x 2192 pixel resolution with a 60 µm pitch
  • Adjustable Gain levels and programmable electronic shutter
  • USB 3.0 communication interface
2 Products
Compare Description Avail. Price
LT665-1550 USB 2752x2192 CCD 1440-1605 nm Laser Beam Profiler SP90384 LT665-1550 Laser Beam Profiler 2752x2192 px, 27 fps, 1440-1605 nm, USB 3.0, BeamGage Standard
LT665-1550 USB 2752x2192 CCD 1440-1605 nm Laser Beam Profiler SP90385 LT665-1550 Laser Beam Profiler, 2752x2192 px, 27 fps, 1440-1605 nm, USB 3.0, BeamGage Pro
Viewing 5 of 2 Products | View All 2 Products

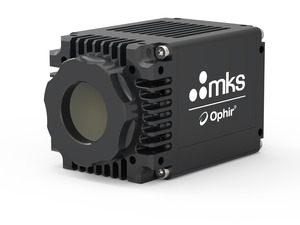

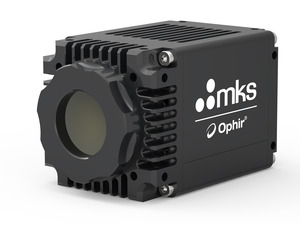

SP1203 GigE 640x512 CCD 900-1700 nm Laser Beam Profiler

SP1203 GigE 640x512 CCD 900-1700 nm Laser Beam Profiler

  • 640 x 512 pixel resolution with a 15 µm pitch
  • Automatic NUC file correction
  • GigE communication interface
3 Products
Compare Description Avail. Price
SP1203 GigE 640x512 CCD 900-1700 nm Laser Beam Profiler SP90524 SP1203 Laser Beam Profiler, 640x512 px, 60 Hz, 900-1700 nm, GigE, BeamGage Pro
SP1203 GigE 640x512 CCD 900-1700 nm Laser Beam Profiler SP90536 Beam Profiler Kit, For SP90524 Profiler
SP1203 GigE 640x512 CCD 900-1700 nm Laser Beam Profiler SP90548 SP1203 Laser Beam Profiler, 640x512 px, 60 Hz, 900-1700 nm, GigE, BeamGage Pro, USA Only
Viewing 5 of 3 Products | View All 3 Products

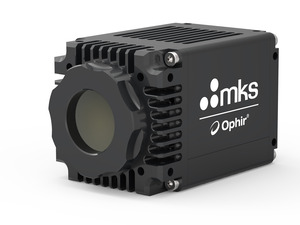

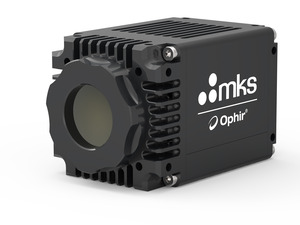

SP1201 GigE 320x256 CCD 900-1700 nm Laser Beam Profiler

SP1201 GigE 320x256 CCD 900-1700 nm Laser Beam Profiler

  • 320 x 256 pixel resolution with a 30 µm pitch
  • Automatic NUC file correction
  • GigE communication interface
3 Products
Compare Description Avail. Price
SP1201 GigE 320x256 CCD 900-1700 nm Laser Beam Profiler SP90523 SP1201 Laser Beam Profiler, 320x256 px, 60 Hz, 900-1700 nm, GigE, BeamGage Pro
SP1201 GigE 320x256 CCD 900-1700 nm Laser Beam Profiler SP90535 Beam Profiler Kit, For SP90535 Profiler
SP1201 GigE 320x256 CCD 900-1700 nm Laser Beam Profiler SP90547 Laser Beam Profiler, 320x256 px, 60 Hz, 900-1700 nm, GigE, BeamGage Pro, USA Only
Viewing 5 of 3 Products | View All 3 Products

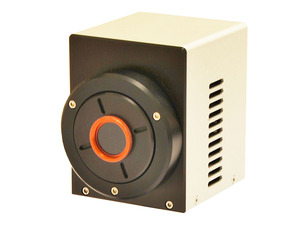

Xeva XC-130 USB 320x256 CCD 900-1700 nm Laser Beam Profiler

Xeva XC-130 USB 320x256 CCD 900-1700 nm Laser Beam Profiler

  • 320 x 256 pixel resolution with a 30 µm pitch
  • NIR performance at room temperature
  • USB 2.0 communication interface
1 Product

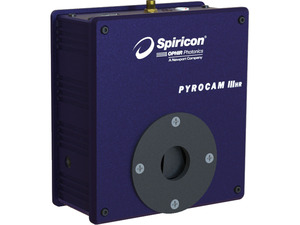

Pyrocam™ IIIHR GigE 160x160 Pyroelectric Array Laser Beam Profiler

Pyrocam™ IIIHR GigE 160x160 Pyroelectric Array Laser Beam Profiler

  • 160 x 160 pyroelectric array with a 80 µm pitch
  • Integrated Chopper for CW Beams
  • GigE communication interface
2 Products
Compare Description Avail. Price
Pyrocam™ IIIHR GigE 160x160 Pyroelectric Array Laser Beam Profiler SP90405 Pyrocam III HR Laser Beam Profiler, 160x160 Pyroelectric, 100 fps, 13-355 nm/1.06-3000 μm, GigE
Pyrocam™ IIIHR GigE 160x160 Pyroelectric Array Laser Beam Profiler SP90415 Pyrocam III HR Laser Beam Profiler, 160x160 Pyroelectric, 100 fps, 3000-5000 nm, GigE
Viewing 5 of 2 Products | View All 2 Products

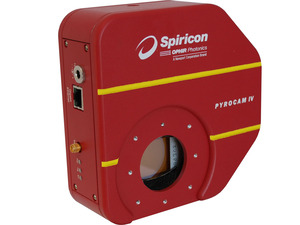

Pyrocam™ IV GigE 320x320 Pyroelectric Array Laser Beam Profiler

Pyrocam™ IV GigE 320x320 Pyroelectric Array Laser Beam Profiler

  • 320 x 320 pyroelectric array with a 80 µm pitch
  • Integrated Chopper for CW Beams
  • GigE communication interface
2 Products
Compare Description Avail. Price
Pyrocam™ IV GigE 320x320 Pyroelectric Array Laser Beam Profiler SP90404 Pyrocam IV Laser Beam Profiler, 320x320 Pyroelectric, 100 fps, 13-355 nm/1.06-3000 μm, GigE
Pyrocam™ IV GigE 320x320 Pyroelectric Array Laser Beam Profiler SP90414 Pyrocam IV Laser Beam Profiler, 320x320 Pyroelectric, 100 fps, 3000-5000 nm, GigE
Viewing 5 of 2 Products | View All 2 Products
Page 1 of 1
